0001.1010.PT

Active

SCHURTER Inc.

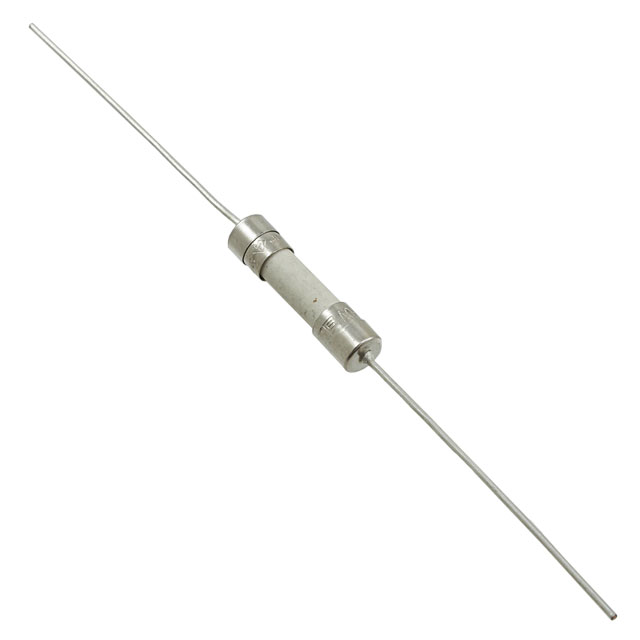

FUSE CERAMIC 4A 250VAC 5X20MM

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERAMIC 4A 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0001.1010.PT

Breaking Capacity @ Rated Voltage	1.5 kA
Current Rating (Amps)	4 A
Fuse Type	Cartridge, Ceramic
Melting I²t	12.6
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

FUSE CERAMIC 4A 250VAC 5X20MM

Part	Package / Case [x]	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Fuse Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - AC	Mounting Type	Response Time	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]
SCHURTER Inc. 0001.1010.PT	5 mm	20 mm	-55 °C	125 °C	Cartridge, Ceramic	4 A	1.5 kA	12.6	250 V	Through Hole	Fast Blow	0.886 "	22.5 mm	5.4 mm	0.213 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.51

General part information

4 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
