74LV4051DB,118

Active

Nexperia USA Inc.

IC MUX 8:1 85OHM 16SSOP

Search across all available documentation for this part.

Active

Nexperia USA Inc.

IC MUX 8:1 85OHM 16SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74LV4051DB,118

-3db Bandwidth	200 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	3.5 pF
Channel Capacitance (CS(off), CD(off)) [custom]	3.5 pF
Crosstalk	-60 dB
Current - Leakage (IS(off)) (Max) [Max]	2 µA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max) [Max]	85 Ohm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

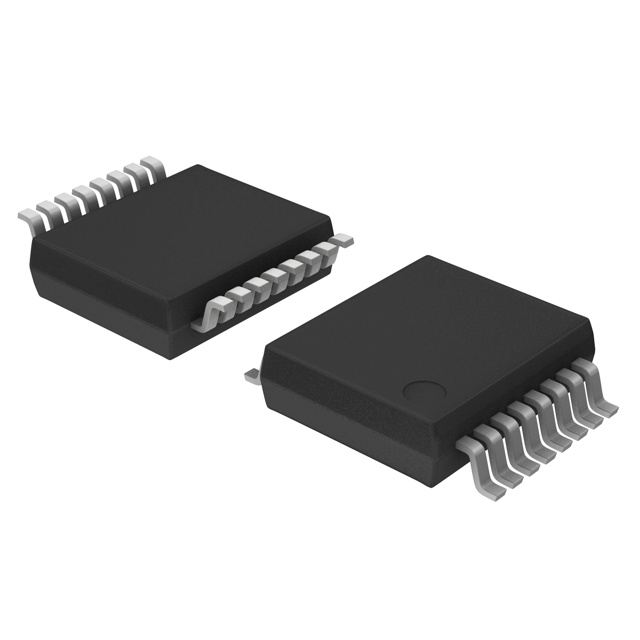

Package / Case	16-SSOP
Package / Case [y]	0.209 in
Package / Case [y]	5.3 mm
Supplier Device Package	16-SSOP
Switch Time (Ton, Toff) (Max) [custom]	34 ns
Switch Time (Ton, Toff) (Max) [custom]	29 ns
Voltage - Supply, Single (V+) [Max]	6 V
Voltage - Supply, Single (V+) [Min]	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC MUX 8:1 85OHM 16SSOP

Part	Supplier Device Package	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Crosstalk	Number of Circuits	Current - Leakage (IS(off)) (Max) [Max]	On-State Resistance (Max) [Max]	Package / Case [y]	Package / Case	Package / Case [y]	Multiplexer/Demultiplexer Circuit	-3db Bandwidth	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Nexperia USA Inc. 74LV4051DB,118 1 Circuit IC Switch 8:1 85Ohm 16-SSOP	16-SSOP	3.5 pF	3.5 pF	1 V	6 V	-60 dB	1	2 µA	85 Ohm	0.209 in	16-SSOP	5.3 mm	8:1	200 MHz	34 ns	29 ns	Surface Mount	-40 °C	125 °C

General part information

1 Circuit IC Switch 8:1 85Ohm 16-SSOP
