Description

General part information

SC-18 Series

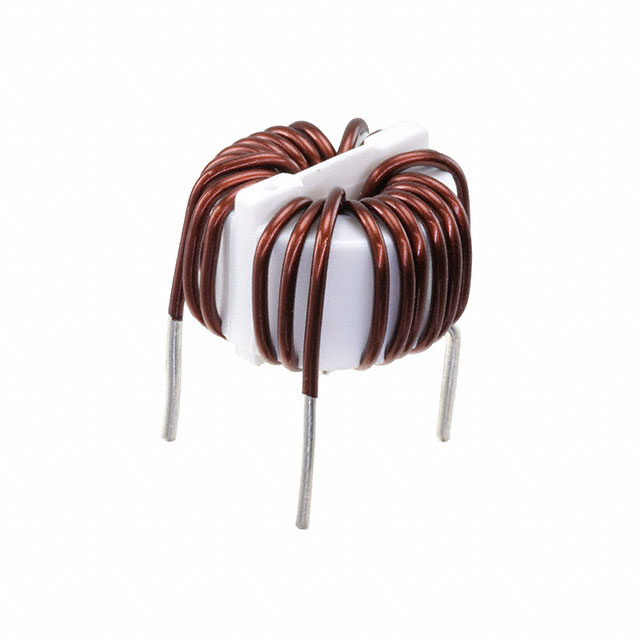

700 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 18A DCR 20mOhm

Technical Specifications

Parameters and characteristics for this part

SpecificationSC-18-100
Current Rating (Max)18 A
DC Resistance (DCR) (Max)20 mOhm
Filter TypePower Line
Height (Max)0.906 in
Inductance700 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Package / CaseNo Base, 4 PC Pin, Horizontal
Package NameNo Base, Horizontal
Pad Count4 PC Pin
Size / Dimension Diameter1.339 in
Voltage Rating - AC250 V
Voltage Rating - DC250 VDC
