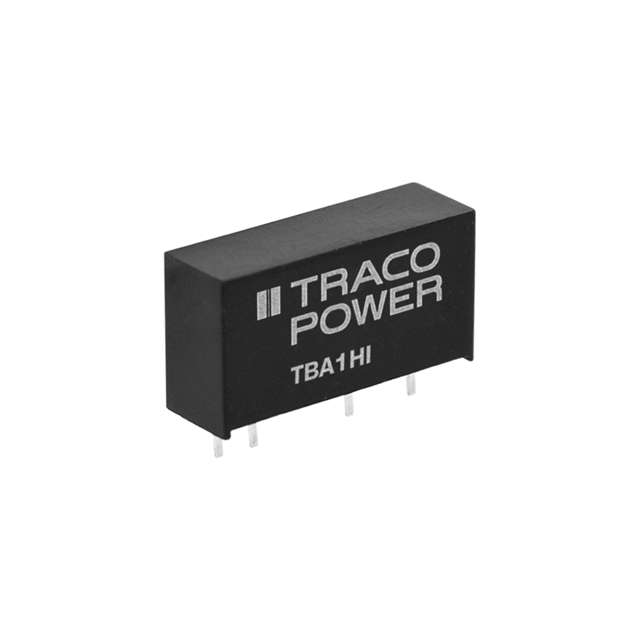

TBA 1-2422HI

Active

Traco Power

DC DC CONVERTER +/-12V 984MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.19
		10	$ 3.85
		25	$ 3.72
		50	$ 3.63
		100	$ 3.53
		250	$ 3.42
		500	$ 3.39

Description

General part information

TBA 1 Series

Isolated Module DC DC Converter 2 Output 12V -12V 41mA, 41mA 21.6V - 26.4V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TBA 1-2422HI	TBA 1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	41 mA	41 mA
Current - Output (Max)	41 mA	41 - 100 mA
Current - Output (Max)	-	33 - 100 mA
Current - Output (Max)	-	65 - 260 mA
Efficiency	-	75 - 80 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	95 °C	95 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads, 4-SIP Module, 7-SIP Module, 4 Leads
Power (Watts)	984 mW	0.99 - 984 W
Size / Dimension	-	0.24 "
Size / Dimension	-	0.46 in
Size / Dimension	-	0.4 "
Size / Dimension [x]	19.5 mm	19.5 mm
Size / Dimension [x]	0.77 "	0.77 - 11.7 "
Size / Dimension [y]	6 mm	6 mm
Size / Dimension [y]	0.24 in	0.24 - 6 in
Size / Dimension [z]	0.39 in	0.39 - 10.2 in
Size / Dimension [z]	10 mm	10 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	26.4 V	5.5 - 26.4 V
Voltage - Input (Min) [Min]	21.6 V	4.5 - 21.6 V
Voltage - Isolation	3000 V	1.5 - 3000 V
Voltage - Output 1	12 V	3.3 - 15 V
Voltage - Output 2	-12 V	-15 - -5 V

TBA 1 Series

DC DC CONVERTER +/-15V 990MW

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Current - Output (Max)	Features	Voltage - Output 1	Power (Watts)	Applications	Voltage - Output 2	Type	Current - Output (Max)	Efficiency	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)
Traco Power TBA 1-2423HI	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	Through Hole	21.6 V	26.4 V	7-SIP Module, 5 Leads	-40 °C	95 °C	2	3000 V	33 mA	SCP	15 V	0.99 W	ITE (Commercial)	-15 V	Isolated Module
Traco Power TBA 1-0521HI	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	Through Hole	4.5 V	5.5 V	7-SIP Module, 5 Leads	-40 °C	95 °C	2	3000 V	100 mA	SCP	5 V		ITE (Commercial)	-5 V	Isolated Module	100 mA	79 %
Traco Power TBA 1-0521E	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	Through Hole	4.5 V	5.5 V	7-SIP Module, 5 Leads	-40 °C	95 °C	2	1.5 kV	100 mA	SCP	5 V		ITE (Commercial)	-5 V	Isolated Module	100 mA	79 %
Traco Power TBA 1-0519		10.2 mm		6 mm		11.7 mm	Through Hole	4.5 V	5.5 V	4-SIP Module	-40 °C	95 °C	1	1.5 kV		SCP	9 V	0.99 W	ITE (Commercial)		Isolated Module		80 %	110 mA	0.24 "	0.46 in	0.4 "
Traco Power TBA 1-0513		10.2 mm		6 mm		11.7 mm	Through Hole	4.5 V	5.5 V	4-SIP Module	-40 °C	95 °C	1	1.5 kV		SCP	15 V	975 mW	ITE (Commercial)		Isolated Module			65 mA	0.24 "	0.46 in	0.4 "
Traco Power TBA 1-2422E	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	Through Hole	21.6 V	26.4 V	7-SIP Module, 5 Leads	-40 °C	95 °C	2	1.5 kV		SCP	12 V	984 mW	ITE (Commercial)	-12 V	Isolated Module	41 mA						41 mA
Traco Power TBA 1-1211		10.2 mm		6 mm		11.7 mm	Through Hole	10.8 V	13.2 V	4-SIP Module	-40 °C	95 °C	1	1.5 kV		SCP	5 V		ITE (Commercial)		Isolated Module		79 %	200 mA	0.24 "	0.46 in	0.4 "
Traco Power TBA 1-0510		10.2 mm		6 mm		11.7 mm	Through Hole	4.5 V	5.5 V	4-SIP Module	-40 °C	95 °C	1	1.5 kV		SCP	3.3 V	858 mW	ITE (Commercial)		Isolated Module		75 %	260 mA	0.24 "	0.46 in	0.4 "
Traco Power TBA 1-2419		10.2 mm		6 mm		11.7 mm	Through Hole	21.6 V	26.4 V	4-SIP Module	-40 °C	95 °C	1	1.5 kV		SCP	9 V	0.99 W	ITE (Commercial)		Isolated Module		80 %	110 mA	0.24 "	0.46 in	0.4 "
Traco Power TBA 1-1223HI	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	Through Hole	10.8 V	13.2 V	7-SIP Module, 5 Leads	-40 °C	95 °C	2	3000 V	33 mA	SCP	15 V	0.99 W	ITE (Commercial)	-15 V	Isolated Module		80 %
