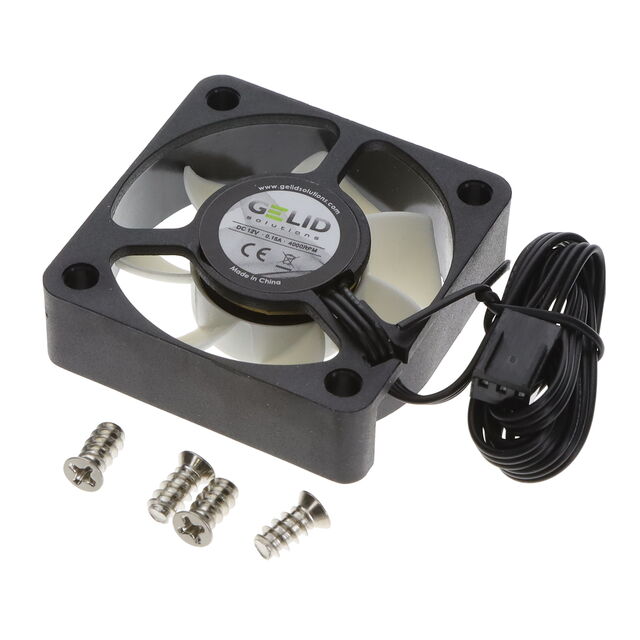

FN-SX05-40

Active

Gelid Solutions LLC

FAN AXL 50X15MM 12VDC RECT CONN

Search across all available documentation for this part.

Active

Gelid Solutions LLC

FAN AXL 50X15MM 12VDC RECT CONN

Technical Specifications

Parameters and characteristics for this part

Specification	FN-SX05-40

Air Flow	0.361 mł/min
Air Flow	12.9 CFM
Approval Agency	CE
Bearing Type	Hydrodynamic
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Features	Fan Mounts Included, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Noise	23 dB(A)
RPM	4000 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.11 in H2O
Static Pressure	27.4 Pa
Termination	3 Position Rectangular Connector
Voltage - Rated	12 VDC
Weight	0.012 lb
Weight	5.44 g
Width [x]	15 mm

FAN AXL 50X15MM 12VDC RECT CONN

Part	Current Rating (Amps)	RPM	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Bearing Type	Voltage - Rated	Weight	Weight	Air Flow	Air Flow	Noise	Fan Type	Width [x]	Features	Termination	Static Pressure	Static Pressure
Gelid Solutions LLC FN-SX05-40	150 mA	4000 RPM	50000 Hrs	50 mm	50 mm	CE	Hydrodynamic	12 VDC	0.012 lb	5.44 g	0.361 mł/min	12.9 CFM	23 dB(A)	Tubeaxial	15 mm	Fan Mounts Included, Speed Sensor (Tach)	3 Position Rectangular Connector	0.11 in H2O	27.4 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Hydrodynamic 12.9 CFM (0.361m³/min) 3 Position Rectangular Connector
