1619373
ActivePhoenix Contact

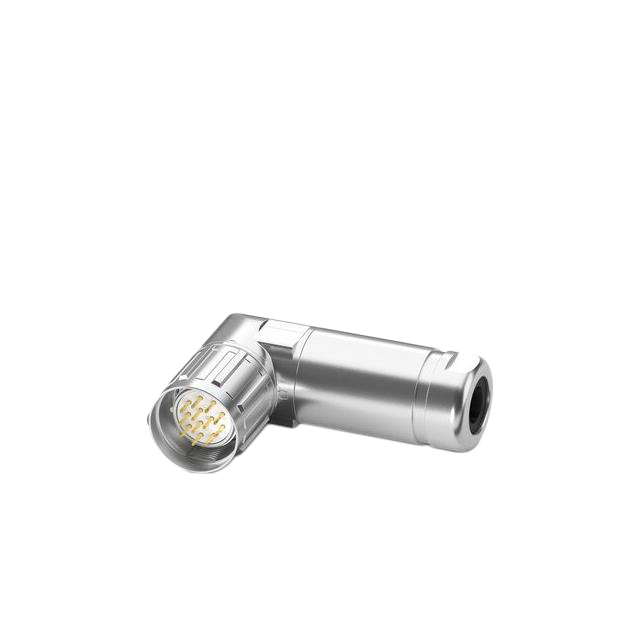

CABLE CONNECTOR, ANGLED, SHIELDE
1619373
ActivePhoenix Contact
CABLE CONNECTOR, ANGLED, SHIELDE
Description
General part information
1619373
19 (16 + 3 Power) Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619373 |
|---|---|
| Cable Opening (Max) | 0.394 in |
| Cable Opening (Min) | 0.236 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating Options | 10A, 8A |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions (Normal) | 16 |
| Number of Positions (Power) | 3 |
| Number of Positions (Total) | 19 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | M23-19 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 74 VDC |
