General part information

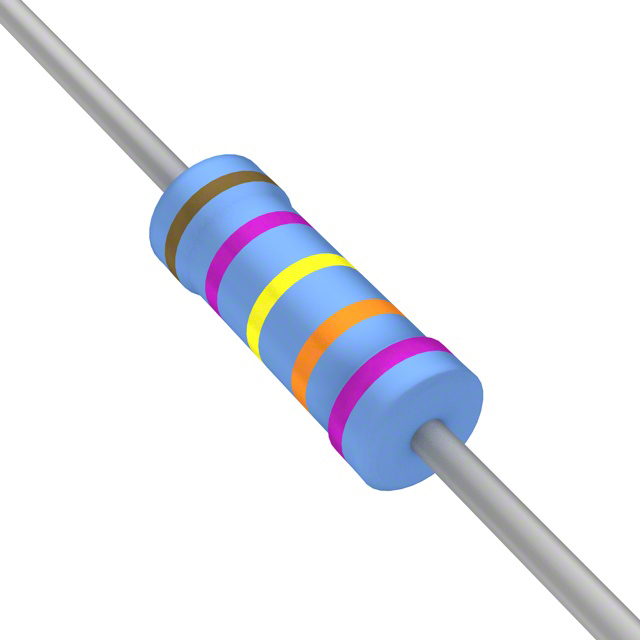

174 kOhms ±0.1% 0.25W, 1/4W Through Hole Resistor Axial Metal Film
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | YR1B174KCC | YR1B Series |
|---|---|---|
| Composition | Metal Film | Metal Film |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 155 °C | 155 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Package / Case | Axial | Axial |
| Power (Watts) | 0.25 W | 0.25 W |
| Power (Watts) | 250 mW | 250 mW |
| Resistance | 174 kOhms | 1 - 750000 Ohms |
| Size / Dimension | 6.3 mm, 2.3 mm | 2.3 - 6.3 mm |
| Size / Dimension [diameter] | 0.091 " | 0.091 " |
| Size / Dimension [z] | 0.248 in | 0.248 in |
| Supplier Device Package | Axial | Axial |
| Temperature Coefficient | 15 ppm/°C | 15 ppm/°C |
| Tolerance | 0.1 % | 0.1 % |
RES 226 OHM 0.1% 1/4W AXIAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Temperature Coefficient | Size / Dimension | Size / Dimension [z] | Size / Dimension [diameter] | Tolerance | Resistance | Composition | Supplier Device Package | Number of Terminations | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Passive Product YR1B226RCC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 226 Ohms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B47K5CC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 47.5 kOhms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B12R1CC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | Metal Film | Axial | 2 | 0.25 W | 250 mW | |
TE Connectivity Passive Product YR1B2K15CC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 2.15 kOhms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B28K7CC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 28.7 kOhms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B453RCC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 453 Ohms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B562KCC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | Metal Film | Axial | 2 | 0.25 W | 250 mW | |
TE Connectivity Passive Product YR1B205RCC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 205 Ohms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B33R2CC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 33.2 Ohms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
TE Connectivity Passive Product YR1B56K2CC | 155 °C | -65 ░C | Axial | 15 ppm/°C | 2.3 mm, 6.3 mm | 0.248 in | 0.091 " | 0.1 % | 56.2 kOhms | Metal Film | Axial | 2 | 0.25 W | 250 mW |
