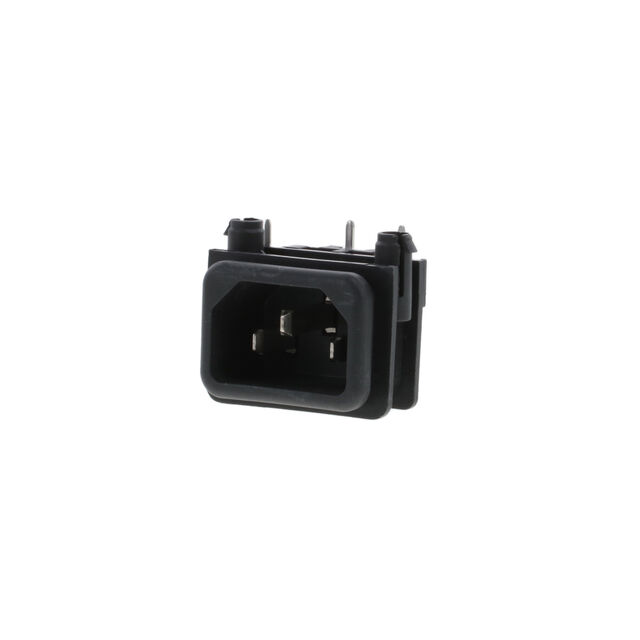

GSF1.1201.51

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.1201.51

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Panel Thickness [x]	Panel Thickness [x]	Filter Type	Accomodates a Fuse	Connector Style	Material Flammability Rating	Termination	Connector Type	Approval Agency	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Ingress Protection	Mounting Type
SCHURTER Inc. GSF1.1201.51	250 VAC	2.5 mm	0.098 in	Unfiltered - Commercial		IEC 320-C14	UL94 V-0	Solder	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	Fuse Holder	10 A	IP40	Panel Mount, Snap-In, Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
