12GM5MX

Active

Switchcraft Inc.

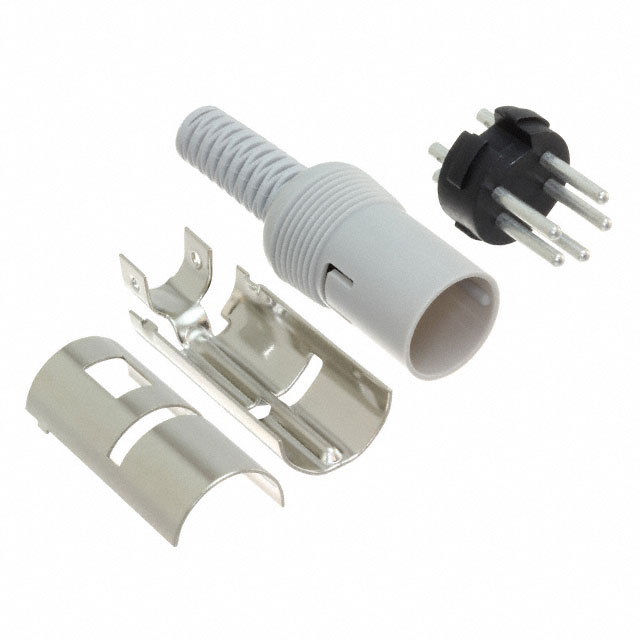

CONN PLUG MALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	12GM5MX

Backshell Material, Plating	Plastic
Color	Gray, Silver
Connector Type	Plug, Male Pins
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Orientation	4
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN (240 Degree)
Shielding	Shielded
Termination	Solder
Voltage Rating	34 V

CONN PLUG MALE DIN 5POS SOLDER

Part	Shell Size - Insert	Shielding	Voltage Rating	Features	Shell Material	Current Rating (Amps)	Termination	Connector Type	Shell Finish	Color	Orientation	Insert Material	Fastening Type	Backshell Material, Plating	Primary Material	Mounting Type
Switchcraft Inc. 12GM5MX	DIN (240 Degree)	Shielded	34 V	Backshell, Cable Clamp, Strain Relief	Zinc Die Cast	3 A	Solder	Male Pins, Plug	Nickel	Gray, Silver	4	Plastic	Push-Pull	Plastic	Metal	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Plug, Male Pins Solder
