2M805-061-16M8-7PA104
ActiveAmphenol Aerospace Operations
LOW PROFILE EMI/RFI PLUG AND BAC
2M805-061-16M8-7PA104
ActiveAmphenol Aerospace Operations
LOW PROFILE EMI/RFI PLUG AND BAC
Description
General part information
2M805-061-16M8-7PA104

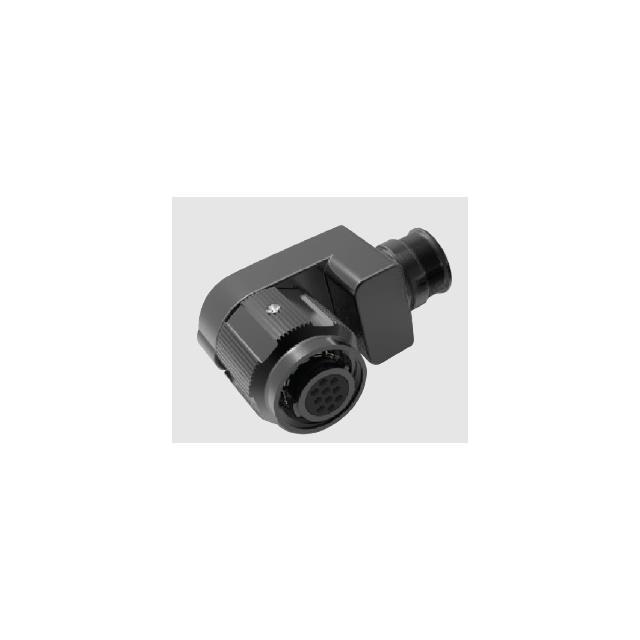

7 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 2M805-061-16M8-7PA104 |
|---|---|
| Cable Opening | 0.25 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Fastening Type | Threaded |
| Features | Backshell |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert Length | 8 mm |
| Shell Size - Insert Width | 7 mm |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
