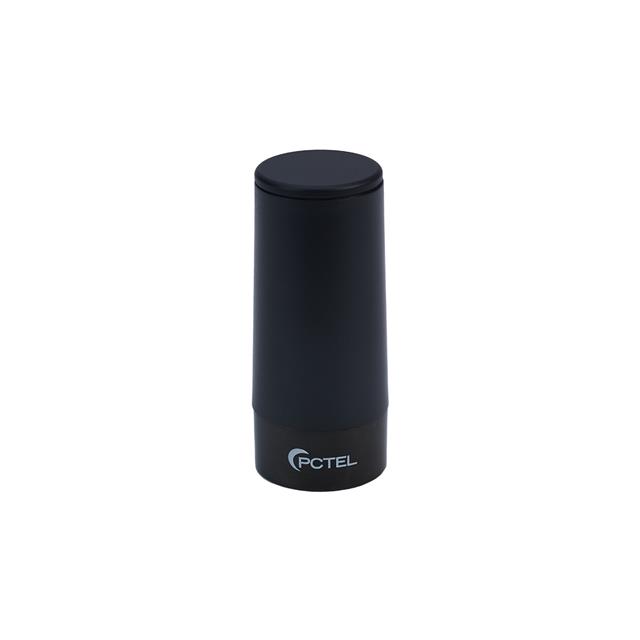

BMLPVDB800/1900HD
ActiveAmphenol PCTEL
RF ANT 883MHZ/2.105GHZ DOME CONN
Deep-Dive with AI
Search across all available documentation for this part.
BMLPVDB800/1900HD
ActiveAmphenol PCTEL
RF ANT 883MHZ/2.105GHZ DOME CONN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BMLPVDB800/1900HD | BMLPVDB800 Series |
|---|---|---|
| Antenna Type | Dome | Dome |
| Applications | LTE, LoRa, ISM, Wi-Fi, LMR/TETRA/P25, Bluetooth, LPWAN | LTE, LoRa, ISM, Wi-Fi, LMR/TETRA/P25, Bluetooth, LPWAN |
| Frequency (Center/Band) | 1.85 GHz, 883 MHz | 1.85 - 883 GHz |
| Frequency Range [Max] | 960 MHz, 1.99 GHz | 1.99 - 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 806 MHz | 1.71 - 806 GHz |
| Gain | 3 dBi, 4 dBi | 3 - 4 dBi |
| Height (Max) [Max] | 2.4 in | 2.4 in |
| Height (Max) [Max] | 60.96 mm | 60.96 mm |
| Ingress Protection | IP67 | IP67 |
| Mounting Type | Connector Mount, Stud, Through Hole, NMO | Connector Mount, Stud, Through Hole, NMO |
| Number of Bands | 2 | 2 |
| Power - Max [Max] | 100 W | 100 W |
| RF Family/Standard | WiFi, Bluetooth, General ISM | WiFi, Bluetooth, General ISM |
| VSWR | 2 | 2 |
BMLPVDB800 Series
RF ANT 883MHZ/2.105GHZ DOME CONN
| Part | Frequency Range [Max] | Frequency Range [Min] | Gain | Height (Max) [Max] | Height (Max) [Max] | Power - Max [Max] | Mounting Type | Applications | Ingress Protection | Antenna Type | RF Family/Standard | Number of Bands | Frequency (Center/Band) | VSWR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol PCTEL BMLPVDB800/1900HD | 1.99 GHz, 960 MHz | 1.71 GHz, 806 MHz | 3 dBi, 4 dBi | 2.4 in | 60.96 mm | 100 W | Connector Mount, NMO, Stud, Through Hole | Bluetooth, ISM, LMR/TETRA/P25, LoRa, LPWAN, LTE, Wi-Fi | IP67 | Dome | Bluetooth, General ISM, WiFi | 2 | 1.85 GHz, 883 MHz | 2 |
Amphenol PCTEL BMLPVDB800/1900 | 1.99 GHz, 960 MHz | 1.71 GHz, 806 MHz | 3 dBi, 4 dBi | 2.4 in | 60.96 mm | 100 W | Connector Mount, NMO, Stud, Through Hole | Bluetooth, ISM, LMR/TETRA/P25, LoRa, LPWAN, LTE, Wi-Fi | IP67 | Dome | Bluetooth, General ISM, WiFi | 2 | 1.85 GHz, 883 MHz | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 49.05 | |
| 10 | $ 37.79 | |||
| 25 | $ 34.91 | |||
| 100 | $ 31.79 | |||
Description
General part information
BMLPVDB800 Series
RF ANTENNA Bluetooth, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi Dome Connector Mount, NMO, Stud, Through Hole
