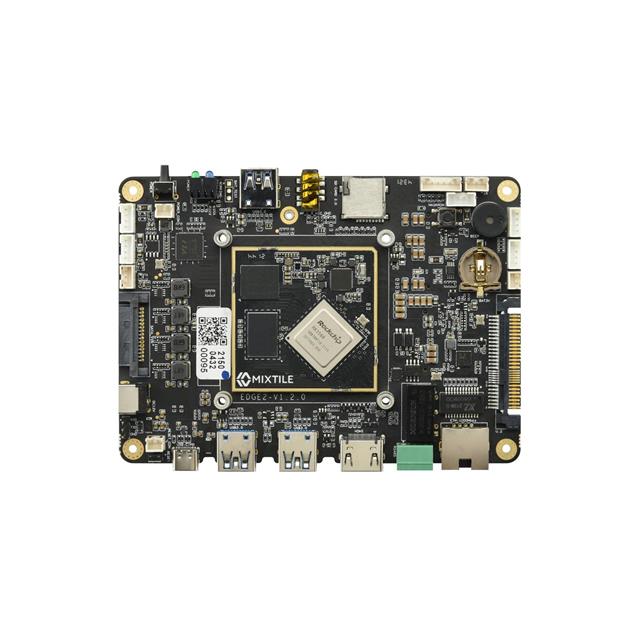

SBC-EDGE2-0216

Active

Mixtile Limited

SBC 2.0GHZ 4 CORE 2GB RAM

Search across all available documentation for this part.

Active

Mixtile Limited

SBC 2.0GHZ 4 CORE 2GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

SBC 2.0GHZ 4 CORE 4GB RAM

Part	RAM Capacity/Installed	Digital I/O Lines	Power (Watts)	Video Outputs	Form Factor	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]	USB	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Analog Input:Output [custom]	Analog Input:Output [custom]	Expansion Site/Bus	Ethernet	Speed	Cooling Type	Watchdog Timer	Number of Cores	Core Processor
Mixtile Limited SBC-EDGE2-0432	4 GB	4	10 W	HDMI 2.0	Pico-ITX	eMMC 5.1	80 C	0 °C	USB 3.0 (3)	3.937 in	100 mm	140 mm	5.512 in	4	4	ADC, CAN, I2C, RS-485, SPDIF, UART	GbE (1)	2 GHz	Heat Sink		4	Rockchip RK3568, Quad-Core-A55
Mixtile Limited SBC-EDGE2-0216	2 GB	4	10 W	HDMI 2.0	Pico-ITX	eMMC 5.1	80 C	0 °C	USB 3.0 (3)	3.937 in	100 mm	140 mm	5.512 in	4	4	ADC, CAN, I2C, RS-485, SPDIF, UART	GbE (1)	2 GHz	Heat Sink		4	Rockchip RK3568, Quad-Core-A55

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer 2GHz 4 Core 2GB RAM Rockchip RK3568, Quad-Core-A55
