01039-1472

Active

Sensata-BEI Sensors

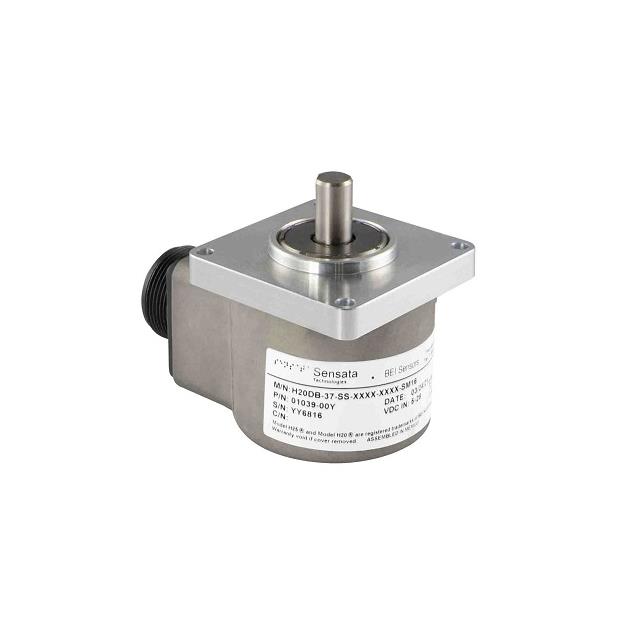

ROTARY ENCODR INCREMENTAL 512PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODR INCREMENTAL 512PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODR INCREMENTAL 512PPR

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	01039-1472	01039 Series

Actuator Type	Shaft	Shaft, Hole for Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Incremental	Optical, Incremental
Mounting Type	Chassis Mount	Chassis Mount
Orientation	User Selectable	User Selectable, Vertical
Output Type	Quadrature (Incremental)	Quadrature with Index (Incremental), Quadrature (Incremental), Pulse
Pulses per Revolution	512	2 - 4096
Rotational Life (Cycles Min) [Min]	1.5B	1.5B
Termination Style	Connector	Connector, Cable, Cable with Connector
Voltage - Supply	-	5 V
Voltage - Supply	-	15 - 28 V

ROTARY ENCODER OPTICAL 200PPR

Part	Rotational Life (Cycles Min) [Min]	Encoder Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Actuator Type	Termination Style	Pulses per Revolution	Orientation	Mounting Type
Sensata-BEI Sensors 01039-2624	1.5B	Optical	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	200	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-3072	1.5B	Optical	5 V	28 V	Quadrature (Incremental)	Shaft	Connector	120	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-1952	1.5B	Optical	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	600	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-3385	1.5B	Incremental	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	500	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-2485	1.5B	Optical	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	1024	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-1998	1.5B	Incremental	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	100	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-2779	1.5B	Incremental	5 V	28 V	Quadrature (Incremental)	Shaft	Connector	4096	Vertical	Chassis Mount
Sensata-BEI Sensors 01039-2190	1.5B	Incremental	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	500	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-1867	1.5B	Incremental	5 V	28 V	Quadrature (Incremental)	Shaft	Connector	100	User Selectable	Chassis Mount
Sensata-BEI Sensors 01039-1886	1.5B	Optical	5 V	28 V	Quadrature with Index (Incremental)	Shaft	Connector	50	User Selectable	Chassis Mount
