917745-1

Active

TE Connectivity AMP Connectors

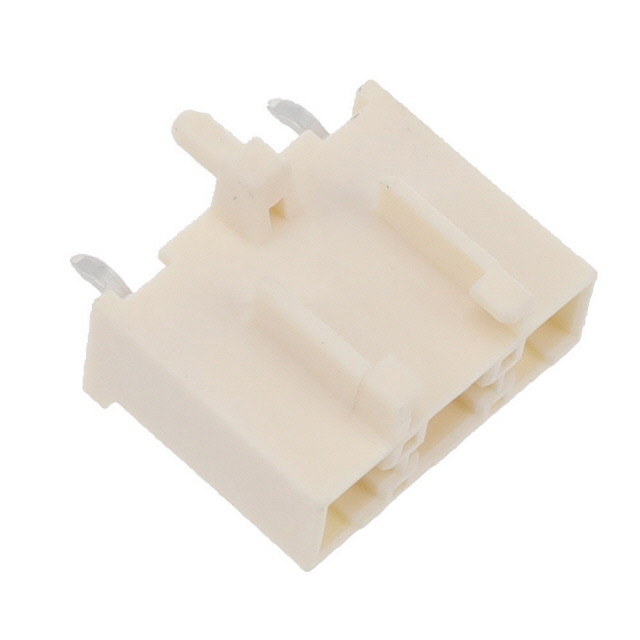

CONN HEADER VERT 3POS 6.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 3POS 6.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917745-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.575 in
Insulation Height	14.6 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	6.5 mm
Pitch - Mating	0.256 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

CONN HEADER VERT 3POS 6.5MM

Part	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Insulation Height	Insulation Height	Applications	Contact Material	Contact Type	Shrouding	Number of Rows	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Contact Finish - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Current Rating (Amps)	Contact Shape	Termination
TE Connectivity AMP Connectors 917745-1	Natural	0.15 in	3.81 mm	2	0.575 in	14.6 mm	General Purpose	Copper Alloy	Tab	Shrouded - 4 Wall	1	Through Hole	UL94 V-0	6.5 mm	0.256 in	Header	Polyamide (PA66), Nylon 6/6	Tin	Board to Cable/Wire	-30 ░C	105 ░C	Locking Ramp	Board Guide	Varies by Wire Gauge	Rectangular	Kinked Pin, Solder
