1823049
ActivePhoenix Contact
TERM BLK 9POS SIDE ENTRY 5MM PCB
1823049
ActivePhoenix Contact
TERM BLK 9POS SIDE ENTRY 5MM PCB
Description
General part information
1823049

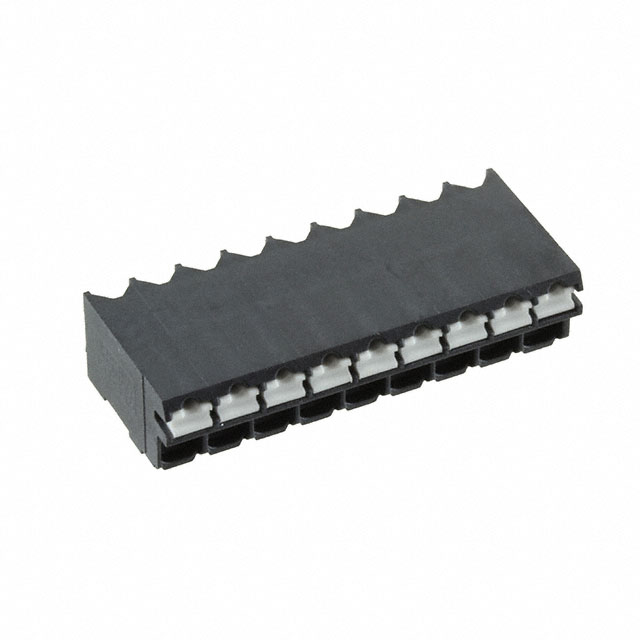

9 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1823049 |
|---|---|
| Color | Black |
| Contact Material - Plating | Tin Plated |
| Current | 10 A |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 9 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
