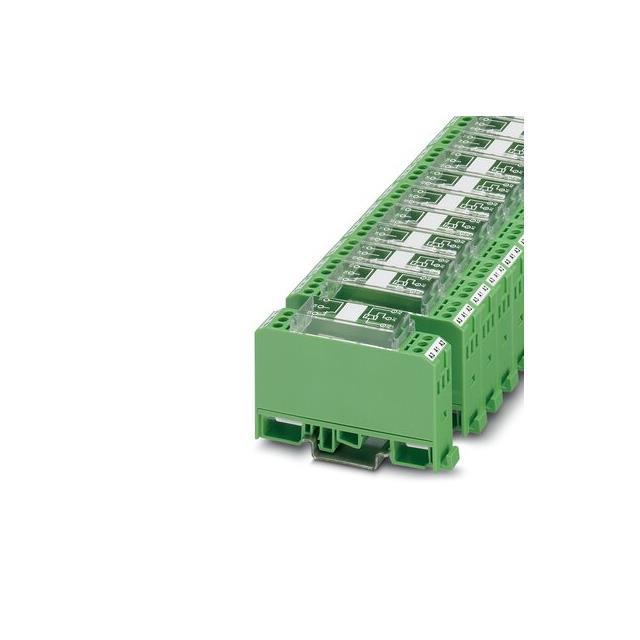

2946654

Active

Phoenix Contact

POWER RLY, DC, SPDT, 250VDC, 6A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

POWER RLY, DC, SPDT, 250VDC, 6A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

POWER RLY, DC, SPDT, 250VDC, 6A ROHS COMPLIANT: YES

Part	Relay Type	Approval Agency	Coil Current	Contact Rating (Current)	Contact Form	Features	Release Time	Switching Voltage	Coil Voltage	Coil Resistance	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Coil Type	Operate Time	Mounting Type	Termination Style
Phoenix Contact 2946654	General Purpose	cULus, EAC, UL	8.5 mA	6 A	SPDT (1 Form C)	Diode, Socket Included	5 ms	250 VAC, 250 VDC	48 VDC	5647 Ohms	Silver Tin Oxide (AgSnO)	-40 °C	50 °C	144 W, 1500 VA	Non Latching	5 ms	DIN Rail	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 48VDC Coil DIN Rail
