DMN2044UCB4-7
ActiveDiodes Inc
N-CHANNEL ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Search across all available documentation for this part.
DMN2044UCB4-7
ActiveDiodes Inc
N-CHANNEL ENHANCEMENT MODE MOSFET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN2044UCB4-7 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.3 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 1.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

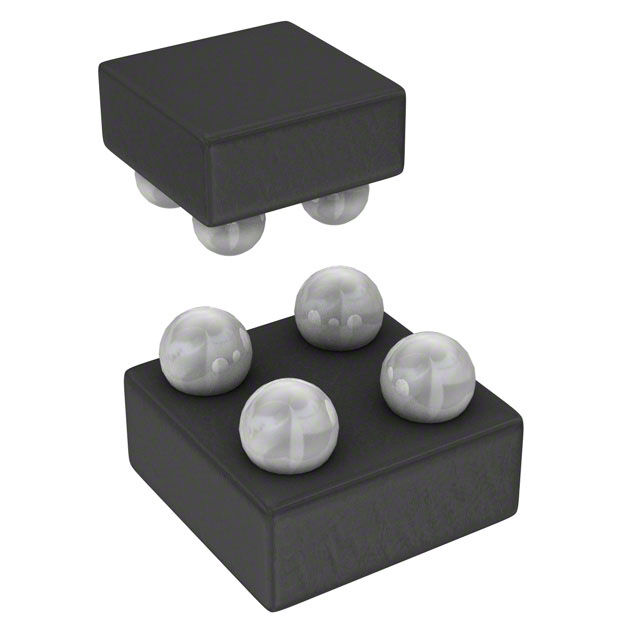

| Package / Case | 4-UFBGA, WLBGA |
| Rds On (Max) @ Id, Vgs | 40 mOhm |
| Supplier Device Package | U-WLB1010-4 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 900 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.49 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.49 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 3000 | $ 0.19 | ||
| 6000 | $ 0.18 | |||
| 9000 | $ 0.17 | |||
| 30000 | $ 0.17 | |||
Description
General part information
DMN2044UCB4 Series
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. It is a high performance MOSFET in ultra-small 1.0mm x 1.0mm package.
