100025235

Active

Telegartner Inc

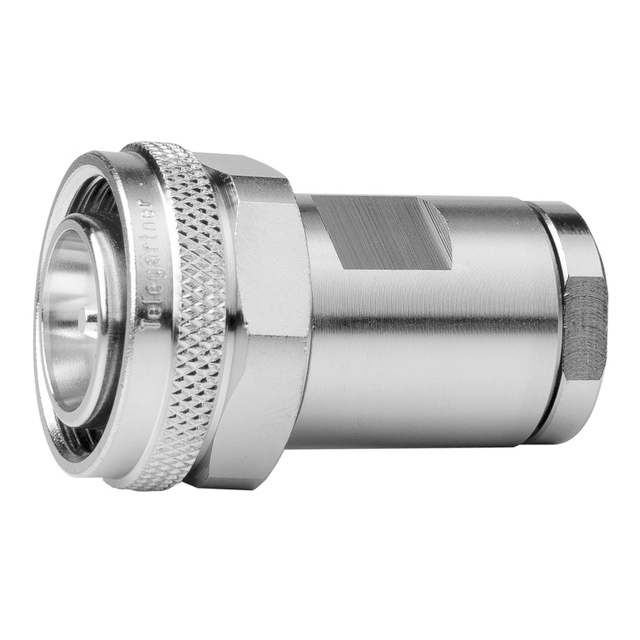

4.3-10 PLGPP STR CL LL400 FIELDM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025235

Active

Telegartner Inc

4.3-10 PLGPP STR CL LL400 FIELDM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025235	J01440A3 Series

Body Finish	White Bronze	White Bronze, Silver
Body Material	Brass	Brass, Beryllium Copper
Center Contact Material	Copper Alloy	Copper Alloy, Brass
Center Contact Plating	Silver	Silver
Connector Style	4.3/10	4.3/10
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder, Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	100 °C	85 - 155 °C
Operating Temperature [Min]	-30 ░C	-55 - -30 °C
Shield Termination	Clamp	Clamp, Crimp, Solder
Voltage Rating	1800 V	1000 - 1800 V

J01440A3 Series

4.3-10 PLGPP STR CL LL240 FIELDM

Part	Frequency - Max [Max]	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Contact Termination	Impedance	Voltage Rating	Housing Color	Ingress Protection	Shield Termination	Center Contact Material	Mounting Type	Connector Type	Center Contact Plating	Body Material	Dielectric Material	Connector Style	Mating Cycles
Telegartner Inc 100025236	6000 MHz	White Bronze	85 °C	-40 °C	1	Crimp, Solder	50 Ohms	1500 V	Silver	IP67 - Dust Tight, Waterproof	Clamp	Copper Alloy	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025240	6000 MHz	White Bronze	85 °C	-40 °C	1	Solder	50 Ohms		Silver	IP67 - Dust Tight, Waterproof	Crimp	Brass	Free Hanging (In-Line), Right Angle	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025243	6000 MHz	Silver	155 °C	-55 °C	1	Solder	50 Ohms		Silver	IP67 - Dust Tight, Waterproof	Solder	Brass	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025229	6000 MHz	Silver	85 °C	-40 °C	1	Crimp, Solder	50 Ohms	1100 V	Silver	IP68 - Dust Tight, Waterproof	Clamp	Copper Alloy	Free Hanging (In-Line)	Male Pin, Plug	Silver	Beryllium Copper	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025226	6000 MHz	White Bronze	85 °C	-40 °C	1	Crimp	50 Ohms		Silver		Crimp	Brass	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025244	6000 MHz	Silver	155 °C	-55 °C	1	Solder	50 Ohms		Silver	IP67 - Dust Tight, Waterproof	Solder	Brass	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025137	6000 MHz	White Bronze	85 °C	-40 °C	1	Crimp, Solder	50 Ohms	1000 VDC	Silver	IP68 - Dust Tight, Waterproof	Clamp	Copper Alloy	Free Hanging (In-Line), Right Angle	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025234	6000 MHz	White Bronze	85 °C	-40 °C	1	Crimp	50 Ohms		Silver		Crimp	Copper Alloy	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10
Telegartner Inc 100025232	6000 MHz	White Bronze	85 °C	-40 °C	1	Crimp, Solder	50 Ohms	1000 VDC	Silver	IP68 - Dust Tight, Waterproof	Clamp	Copper Alloy	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass		4.3/10	500
Telegartner Inc 100025235	6000 MHz	White Bronze	100 °C	-30 ░C	1	Crimp, Solder	50 Ohms	1800 V	Silver	IP67 - Dust Tight, Waterproof	Clamp	Copper Alloy	Free Hanging (In-Line)	Male Pin, Plug	Silver	Brass	Polytetrafluoroethylene (PTFE)	4.3/10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 37.28
		10	$ 34.26
		25	$ 31.69
		50	$ 28.17

Description

General part information

J01440A3 Series

4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
