14520-EZAB-100-0EC

Active

3M MINI D RIBBON (MDR) CABLE ASSEMBLY, .050", 14520-EZAB-100-0EC

Search across all available documentation for this part.

Active

3M MINI D RIBBON (MDR) CABLE ASSEMBLY, .050", 14520-EZAB-100-0EC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14520-EZAB-100-0EC	14520 Series

Cable Type	Round, Beige	Round, Beige
Configuration	Centronics 20 pos Male to Male	26 pos Male, Centronics 20 pos Male, Centronics 20 pos Male to Male
Length [x]	1 m	1 - 10 m
Length [x]	3.28 ft	3.28 - 32.81 ft
Shielding	Shielded	Shielded
Style	Bidirectional	Bidirectional

CABLE ASSY MDR 20-26POS M-M 2.0M

Part	Cable Type	Configuration	Length [x]	Length [x]	Shielding	Style
3M 14520-EZDB-200-0EC	Round, Beige	26 pos Male, Centronics 20 pos Male	2 m	6.56 ft	Shielded	Bidirectional
3M 14520-EZAB-100-0EC	Round, Beige	Centronics 20 pos Male to Male	1 m	3.28 ft	Shielded	Bidirectional
3M 14520-EZDB-500-0EC	Round, Beige	26 pos Male, Centronics 20 pos Male			Shielded	Bidirectional
3M 14520-EZAB-A00-0EC	Round, Beige	Centronics 20 pos Male to Male	10 m	32.81 ft	Shielded	Bidirectional
3M 14520-EZDB-300-0EC	Round, Beige	26 pos Male, Centronics 20 pos Male	3 m	9.84 ft	Shielded	Bidirectional
3M 14520-EZAB-300-0EC	Round, Beige	Centronics 20 pos Male to Male	3 m	9.84 ft	Shielded	Bidirectional

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

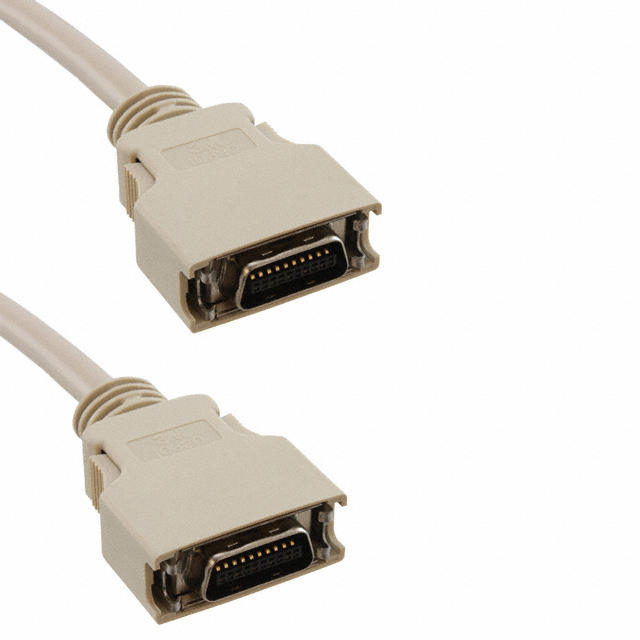

Centronics 20 pos Male to Male Assembly 3.28' (1.00m) Round, Beige

Technical documentation and resources
