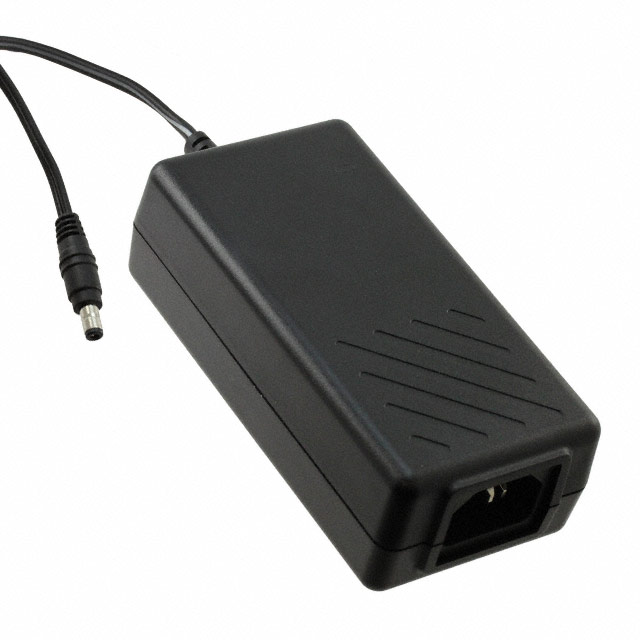

FWE050024A-10A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 24V 50W
Deep-Dive with AI
Search across all available documentation for this part.
FWE050024A-10A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 24V 50W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FWE050024A-10A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cTUVus, CE, CCC, CB |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 2.08 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 50 W |
| Region Utilized | International |
| Size / Dimension [x] | 114.2 mm |
| Size / Dimension [x] | 4.5 in |
| Size / Dimension [y] | 2.26 in |
| Size / Dimension [y] | 57.5 mm |
| Size / Dimension [z] | 36.5 mm |
| Size / Dimension [z] | 1.44 " |
| Standard Number | 62368-1 |
| Voltage - Output | 24 V |
| Weight | 0.4 lb |
| Weight | 181.44 g |
FWE050024 Series
| Part | Input Connector | Form | Polarization | Applications | Input Type | Region Utilized | Approval Agency | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Cord Length | Cord Length | Weight | Weight | Output Connector [diameter] | Output Connector [x] | Output Connector | Power (Watts) | No Load Power Consumption | Current - Output (Max) [Max] | Standard Number | Voltage - Output | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inventus Power | IEC 320-C8 | Desktop (Class II) | Positive Center | ITE (Commercial) | Cord | International | CB CCC CE cTUVus | Level VI | 114.2 mm | 2.26 in | 36.5 mm | 1.44 " | 4.5 in | 57.5 mm | 1.22 m | 48 in | 0.508 lb | 230.42 g | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 50 W | 300 mW | 2.08 A | 60950-1 62368-1 | 24 V | 60 °C | 0 °C |
Inventus Power | IEC 320-C14 | Desktop (Class I) | Positive Center | ITE (Commercial) | Cord | International | CB CCC CE cTUVus | Level VI | 114.2 mm | 2.26 in | 36.5 mm | 1.44 " | 4.5 in | 57.5 mm | 1.22 m | 48 in | 0.4 lb | 181.44 g | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 50 W | 100 mW | 2.08 A | 62368-1 | 24 V | 60 °C | 0 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.50 | |
| 5 | $ 32.00 | |||
| 10 | $ 31.50 | |||
| 25 | $ 30.00 | |||
| 50 | $ 29.00 | |||
| 100 | $ 27.00 | |||
| 250 | $ 26.60 | |||
Description
General part information
FWE050024 Series
24V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
