3213957
ActivePhoenix Contact
CONN TERM BLK DISCONN 12-26AWG
3213957
ActivePhoenix Contact
CONN TERM BLK DISCONN 12-26AWG
Description
General part information
3213957

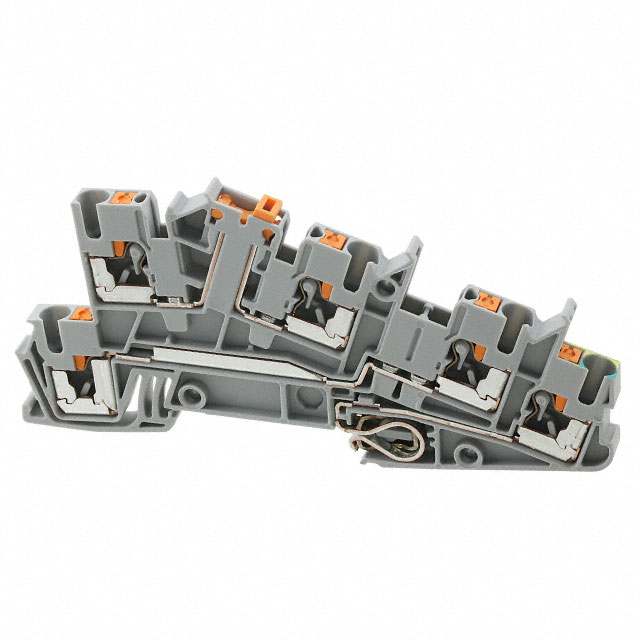

Terminal Block Connector 5 Position Disconnect, Feed Through, Isolated Gray 12-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3213957 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Disconnect Type | Switch, Knife |
| Grounded Levels | 1 |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3 |
| Number of Positions | 5 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through, Disconnect, Isolated |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
