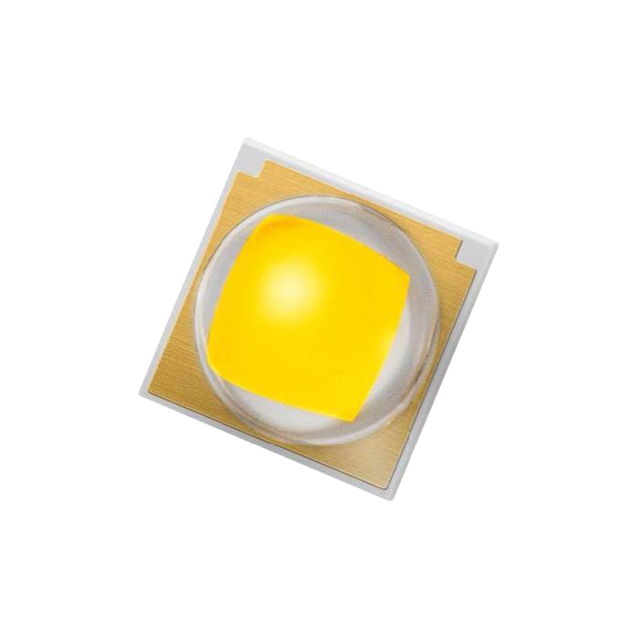

SCP7TTJ5HEL1TLPF6E

Samsung Semiconductor, Inc.

LED LH231B NEUT WHT 4000K SMD

Search across all available documentation for this part.

Samsung Semiconductor, Inc.

LED LH231B NEUT WHT 4000K SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH231B White, Neutral 4000K 5-Step MacAdam Ellipse 2.9V 700mA 120° 1111 (2828 Metric)

Technical documentation and resources

No documents available

Part	Color	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Max [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	CRI (Color Rendering Index)	Mounting Type	Package / Case	Viewing Angle	Lumens/Watt @ Current - Test
Samsung Semiconductor, Inc. SCP7TTJ5HEL1TUQF6E	Neutral, White	4000 K	0.019 in	0.48 mm	2 A	340 lm	310 lm	370 lm	2.9 V	0.11 in	0.11 in	2.8 mm	2.8 mm	SMD	70	Surface Mount	1111 (2828 Metric)	120 °
Samsung Semiconductor, Inc. SCP7TTJ5HEL1TLPF6E	Neutral, White	4000 K	0.019 in	0.48 mm	2 A	320 lm			2.9 V	0.11 in	0.11 in	2.8 mm	2.8 mm	SMD	70	Surface Mount	1111 (2828 Metric)	120 °	158 lm/W
