27961
ObsoleteParallax Inc.

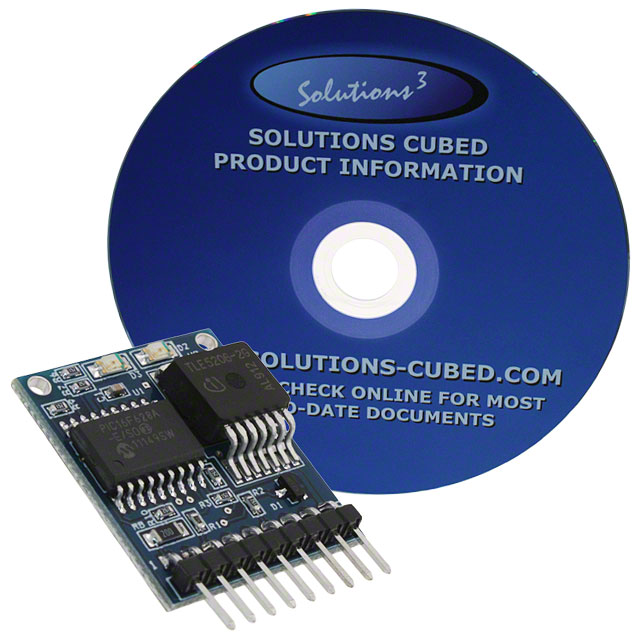

BRUSHED DRIVER 1.75A 6-30V LOAD
27961
ObsoleteParallax Inc.
BRUSHED DRIVER 1.75A 6-30V LOAD
Description
General part information
27961
Brushed 4.5 ~ 5.5VDC Supply 1.75A 6 ~ 30V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 27961 |
|---|---|
| Control / Drive Type | Brushed |
| Current - Output | 1.75 A |
| Motor Type | Brushed DC |
| Mounting Type | Through Hole |
| Number of Motors | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Board |
| Voltage - Load (Max) | 30 V |
| Voltage - Load (Min) | 6 V |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
