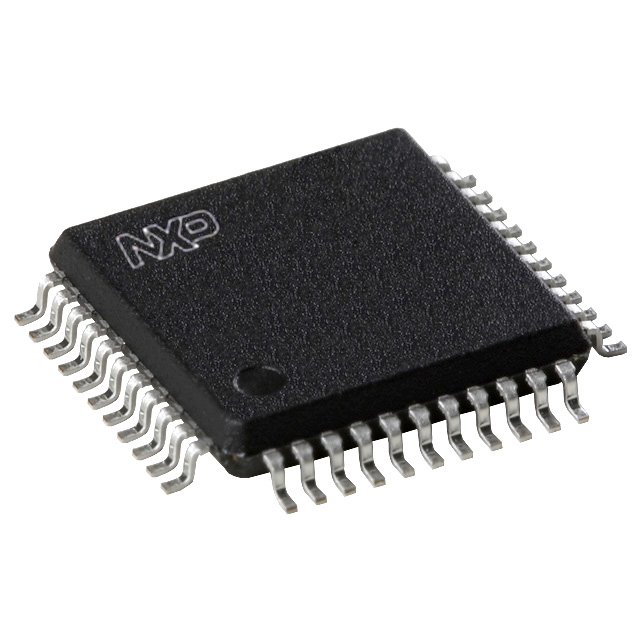

UDA1355H/N2,518

Obsolete

NXP USA Inc.

IC CODEC STER/SUDIO SPDIF 44QFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UDA1355H/N2,518

Obsolete

NXP USA Inc.

IC CODEC STER/SUDIO SPDIF 44QFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UDA135 Series

Stereo Audio Interface 24 b I2C, Serial 44-PQFP (10x10)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UDA1355H/N2,518	UDA135 Series

Data Interface	Serial, I2C	I2C, PCM, Serial
Mounting Type	Surface Mount	Surface Mount
Number of ADCs / DACs [custom]	2	2
Number of ADCs / DACs [custom]	2	2
Number of Channels	-	2 - 3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	44-QFP	28-SSOP, 44-QFP
Package / Case	-	0.209 in
Package / Case	-	5.3 mm
Resolution (Bits)	24 b	20 - 24 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	98 db	98 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	97 db	97 db
Sampling Rate (Per Second)	-	48 k
Sampling Rate (Per Second)	-	100k
Sigma Delta	False	False
Supplier Device Package	44-PQFP (10x10)	28-SSOP, 44-PQFP (10x10)
Type	Stereo Audio	Audio, DAC, Stereo Audio
Voltage - Supply	-	2.7 V
Voltage - Supply	-	3.6 V
Voltage - Supply, Analog [Max]	5.5 V	5.5 V
Voltage - Supply, Analog [Min]	2.7 V	2.7 V
Voltage - Supply, Digital [Max]	5.5 V	5.5 V
Voltage - Supply, Digital [Min]	2.7 V	2.7 V
Voltage Supply Source	-	Analog and Digital

UDA135 Series

IC DAC/AUDIO 20BIT 48K 28SSOP

Part	Supplier Device Package	Voltage Supply Source	Data Interface	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Channels [custom]	Sampling Rate (Per Second)	Mounting Type	Resolution (Bits)	Package / Case [custom]	Package / Case	Package / Case [custom]	Sampling Rate (Per Second)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]
NXP USA Inc. UDA1352TS/N3,118	28-SSOP	Analog and Digital	I2C	Audio, DAC	85 °C	-40 °C	2.7 V	3.6 V	3	48 k	Surface Mount	20 b	0.209 in	28-SSOP	5.3 mm
NXP USA Inc. UDA1351H/N1,557	44-PQFP (10x10)	Analog and Digital	PCM	Audio, DAC	85 °C	-40 °C	2.7 V	3.6 V	2		Surface Mount	24 b		44-QFP		100k
NXP USA Inc. UDA1351TS/N1,512	28-SSOP	Analog and Digital	PCM	Audio, DAC	85 °C	-40 °C	2.7 V	3.6 V	2		Surface Mount	20 b	0.209 in	28-SSOP	5.3 mm	100k
NXP USA Inc. UDA1351TS/N1,518	28-SSOP	Analog and Digital	PCM	Audio, DAC	85 °C	-40 °C	2.7 V	3.6 V	2		Surface Mount	20 b	0.209 in	28-SSOP	5.3 mm	100k
NXP USA Inc. UDA1355H/N2,518	44-PQFP (10x10)		I2C, Serial	Stereo Audio	85 °C	-40 °C					Surface Mount	24 b		44-QFP			2.7 V	5.5 V	5.5 V	2.7 V	98 db	97 db	2	2
NXP USA Inc. UDA1355H/N2,557	44-PQFP (10x10)		I2C, Serial	Stereo Audio	85 °C	-40 °C					Surface Mount	24 b		44-QFP			2.7 V	5.5 V	5.5 V	2.7 V	98 db	97 db	2	2
NXP USA Inc. UDA1352TS/N3,112	28-SSOP	Analog and Digital	I2C	Audio, DAC	85 °C	-40 °C	2.7 V	3.6 V	3	48 k	Surface Mount	20 b	0.209 in	28-SSOP	5.3 mm
