1410992-3

Active

TE Connectivity AMP Connectors

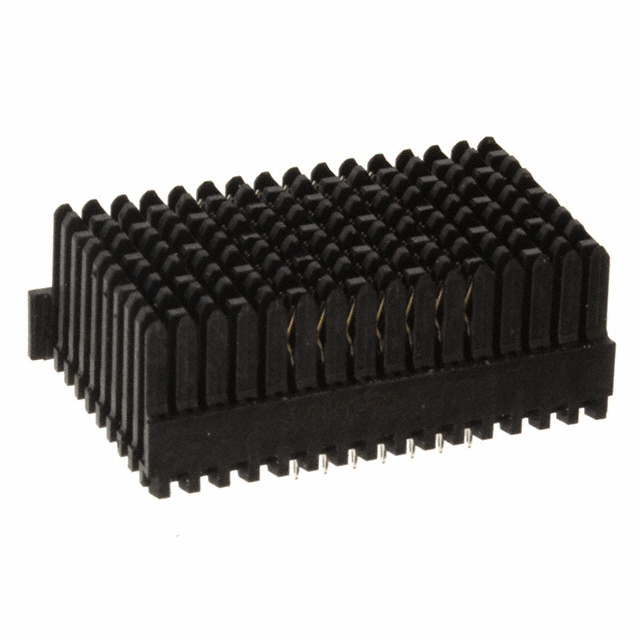

CONN RCPT VITA46 63POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT VITA46 63POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1410992-3

Color	Black
Connector Style	VITA 46, Center
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	15
Number of Positions	63
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

CONN RCPT VITA46 63POS PCB

Part	Connector Style	Mounting Type	Contact Finish	Termination	Number of Columns	Number of Rows	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Usage	Pitch [x]	Pitch [x]	Material Flammability Rating	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
TE Connectivity AMP Connectors 1410992-3	Center, VITA 46	Through Hole	Gold	Press-Fit	15	7	50 V	Receptacle, Female Blade Sockets	105 ░C	-55 °C	Daughtercard	0.071 in	1.8 mm	UL94 V-0	Black	50 µin	1.27 µm	63

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

63 Connector Receptacle, Female Blade Sockets Through Hole Black VITA 46, Center
