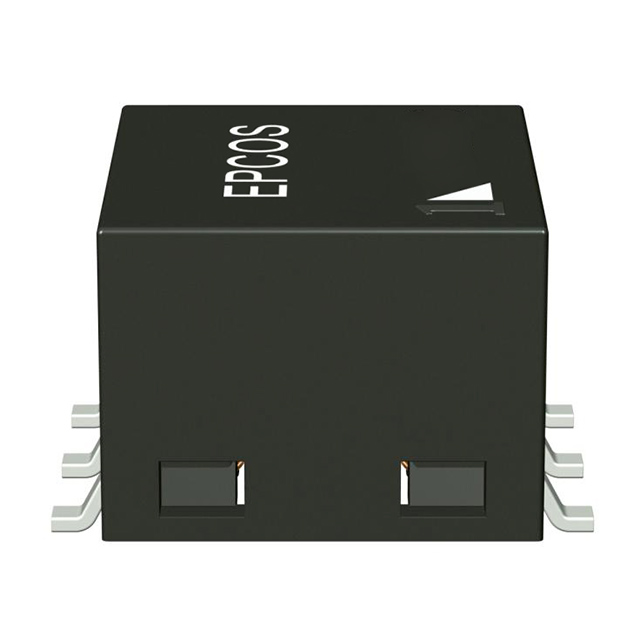

B82805A0952A250
ActiveEPCOS - TDK Electronics
XFMR FWD P-P DC/DC CONV 9.5UH SM
B82805A0952A250
ActiveEPCOS - TDK Electronics
XFMR FWD P-P DC/DC CONV 9.5UH SM
Description
General part information
B82805A0952A250
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 500VAC Isolation 250kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B82805A0952A250 |
|---|---|
| Applications | Forward, Push-Pull Converters |
| Footprint Length | 0.315 in |
| Footprint Width | 0.378 in |
| Frequency | 250 kHz |
| Height - Seated (Max) | 0.224 in |
| Inductance | 9.5 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.236 in |
| Type | For DC/DC Converters |
| Voltage - Isolation | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
