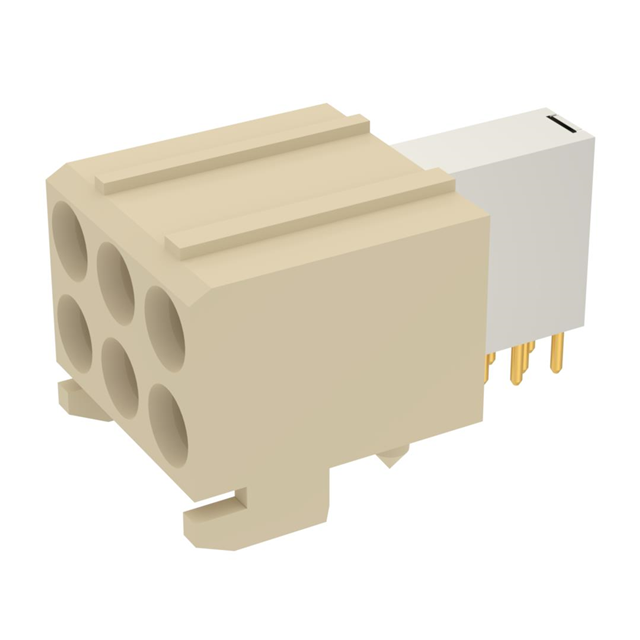

R694252102
ActiveRadiall USA, Inc.
COAXIPACK 2 / RIGHT ANGLE FEMALE
Deep-Dive with AI
Search across all available documentation for this part.
R694252102
ActiveRadiall USA, Inc.
COAXIPACK 2 / RIGHT ANGLE FEMALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R694252102 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCC2 |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK), Polyetherimide (PEI) |
| Fastening Type | Push-Pull |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
R69425 Series
| Part | Mating Cycles | Impedance | Connector Type | Frequency - Max [Max] | Contact Termination | Connector Style | Center Contact Plating | Fastening Type | Insertion Loss | Housing Color | Body Material | Body Finish | Dielectric Material | Shield Termination | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Voltage Rating | Mounting Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | 500 | 50 Ohms | Female Socket Jack | 6000 MHz | Solder | MCC2 | Gold | Push-Pull | 0.2 dB | Silver | Brass | Nickel | Polyetheretherketone (PEEK) Polyetherimide (PEI) | Solder | 6 | 125 °C | -25 °C | Beryllium Copper | 500 V | Through Hole Right Angle | |
Radiall USA, Inc. | 500 | 50 Ohms | Female Socket Jack | 6000 MHz | Crimp | MCC2 | Gold | Push-Pull | 0.2 dB | Gold | Brass | Gold | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | Crimp | 6 | 125 °C | -25 °C | Beryllium Copper | 500 V | Free Hanging (In-Line) | 316 RG-188 |
Radiall USA, Inc. | 500 | 50 Ohms | Female Socket Jack | 6000 MHz | Crimp | Gold | Push-Pull | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | Crimp | 6 | 125 °C | -25 °C | Beryllium Copper | 500 V | Free Hanging (In-Line) | RG-178 | ||
Radiall USA, Inc. | 500 | 50 Ohms | Female Socket Jack | 6000 MHz | Solder | MCC2 | Gold | Push-Pull | 0.2 dB | Silver | Brass | Nickel | Polyetheretherketone (PEEK) Polyetherimide (PEI) | Solder | 2 | 125 °C | -25 °C | Beryllium Copper | 500 V | Through Hole Right Angle | |
Radiall USA, Inc. | 500 | 75 Ohms | Female Socket Jack | 6000 MHz | Crimp | MCC2 | Gold | Push-Pull | 0.2 dB | Gold | Brass | Gold | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | Crimp | 6 | 125 °C | -25 °C | Beryllium Copper | 500 V | Free Hanging (In-Line) | |
Radiall USA, Inc. | 500 | 50 Ohms | Female Socket Jack | 6000 MHz | Solder | MCC2 | Gold | Push-Pull | 0.2 dB | Silver | Brass | Nickel | Polyetheretherketone (PEEK) Polyetherimide (PEI) | Solder | 4 | 125 °C | -25 °C | Beryllium Copper | 500 V | Through Hole Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 62.99 | |
Description
General part information
R69425 Series
MCC2 Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
