FMCA2940-36
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 3
FMCA2940-36
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 3
Description
General part information
FMCA2940-36

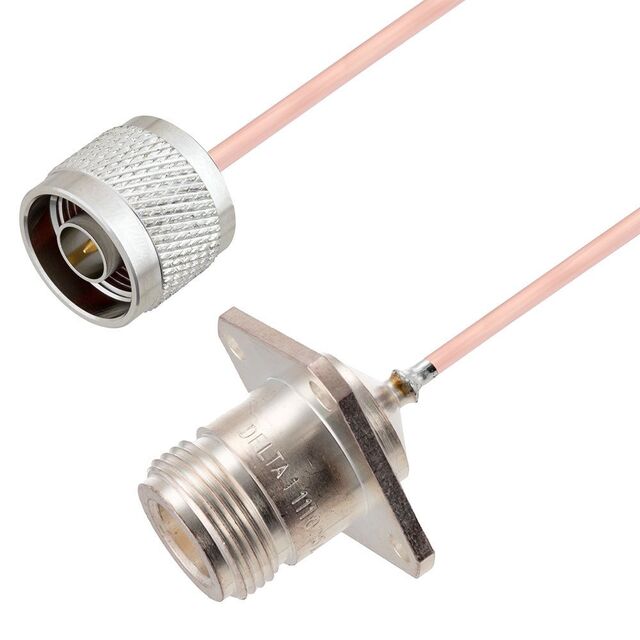

Cable Assembly Coaxial N-Type to N-Type Hand Formable .047 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2940-36 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Flange |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
