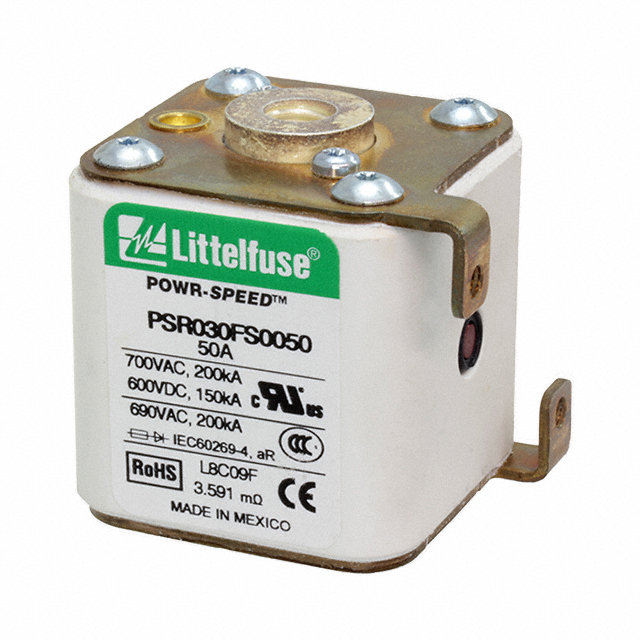

PSR030FS0050Z
ActiveLITTELFUSE
FUSE, SEMICONDUCTOR, HIGH-SPEED FUSE, POWR-SPEED PSR SERIES, 50 A, VERY FAST ACTING
PSR030FS0050Z
ActiveLITTELFUSE
FUSE, SEMICONDUCTOR, HIGH-SPEED FUSE, POWR-SPEED PSR SERIES, 50 A, VERY FAST ACTING
Description
General part information
PSR030FS0050Z
50A 700 VAC 600 VDC Fuse Square Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PSR030FS0050Z |
|---|---|
| Applications | Semiconductors |
| Approval Agency | UL, cURus, CE, CCC |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 150 kA |
| Current Rating | 50 A |
| Features | Indicating |
| Fuse Type | Square |
| Melting I²t | 110 |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Response Time | Fast Blow |
| Size / Dimension Height | 1.929 in |
| Size / Dimension Length | 1.969 in |
| Size / Dimension Width | 1.693 in |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 600 V |
