PHW.2B.314.XYCD82
ActiveLEMO

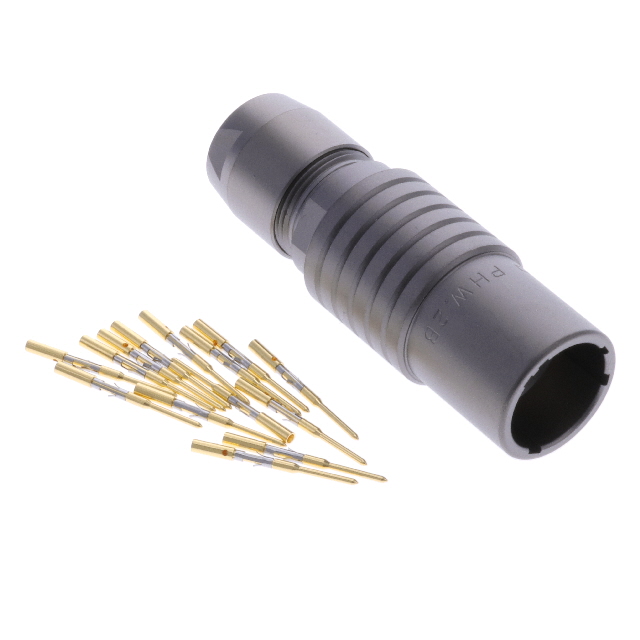

CONN RCPT MALE 14POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PHW.2B.314.XYCD82
ActiveLEMO
CONN RCPT MALE 14POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PHW.2B.314.XYCD82 | PHW.2B Series |
|---|---|---|
| Backshell Material, Plating | Aluminum Alloy, Nickel | Aluminum Alloy, Nickel |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening [Max] [diameter] | 8.2 mm | 6.2 - 8.2 mm |
| Cable Opening [Max] [diameter] | 0.323 in | 0.244 - 0.323 in |
| Cable Opening [Min] [diameter] | 7.2 mm | 5.2 - 7.2 mm |
| Cable Opening [Min] [diameter] | 0.283 in | 0.205 - 0.283 in |
| Color | Gray | Gray |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 6.5 A | 6.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 14 | 14 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | W | W |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 314 | 314 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
PHW.2B Series
CONN RCPT MALE 14POS GOLD CRIMP
| Part | Insert Material | Contact Material | Orientation | Termination | Ingress Protection | Shielding | Shell Size - Insert | Color | Number of Positions | Fastening Type | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Primary Material | Features | Contact Finish - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Backshell Material, Plating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Brass | W | Crimp | IP50 | Shielded | 314 | Gray | 14 | Push-Pull | Aluminum Alloy | 1 µm | 39.4 µin | Nickel | Metal | Backshell | Gold | Male Pins, Receptacle | -55 °C | 250 °C | Free Hanging (In-Line) | UL94 V-0 | 6.5 A | 6.2 mm | 5.2 mm | 0.205 in | 0.244 in | Aluminum Alloy, Nickel | ||||
Polyetheretherketone (PEEK) | Brass | W | Crimp | IP50 | Shielded | 314 | Gray | 14 | Push-Pull | Aluminum Alloy | 1 µm | 39.4 µin | Nickel | Metal | Backshell | Gold | Male Pins, Receptacle | -55 °C | 250 °C | Free Hanging (In-Line) | UL94 V-0 | 6.5 A | 8.2 mm | 7.2 mm | 0.283 in | 0.323 in | Aluminum Alloy, Nickel | ||||
Polyetheretherketone (PEEK) | Brass | W | Crimp | IP50 | Shielded | 314 | Gray | 14 | Push-Pull | Aluminum Alloy | 1 µm | 39.4 µin | Nickel | Metal | Backshell | Gold | Male Pins, Receptacle | -55 °C | 250 °C | Free Hanging (In-Line) | UL94 V-0 | 6.5 A | 6.2 mm | 5.2 mm | 0.205 in | 0.244 in | Aluminum Alloy, Nickel | ||||
Polyetheretherketone (PEEK) | Brass | W | Crimp | IP50 | Shielded | 314 | Gray | 14 | Push-Pull | Aluminum Alloy | 1 µm | 39.4 µin | Nickel | Metal | Backshell | Gold | Male Pins, Receptacle | -55 °C | 250 °C | Free Hanging (In-Line) | UL94 V-0 | 6.5 A | Aluminum Alloy, Nickel | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | |||||
Polyetheretherketone (PEEK) | Brass | W | IP50 | Shielded | 314 | Gray | 14 | Push-Pull | Aluminum Alloy | 1 µm | 39.4 µin | Nickel | Metal | Backshell | Gold | Male Pins, Receptacle | -55 °C | 250 °C | Free Hanging (In-Line) | UL94 V-0 | 6.5 A | Aluminum Alloy, Nickel | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 130.90 | |
| 10 | $ 120.12 | |||
| 25 | $ 115.50 | |||
| 50 | $ 111.65 | |||
Description
General part information
PHW.2B Series
14 Position Circular Connector Receptacle, Male Pins Crimp
