1108691
ActiveSICK, Inc.
SAFETY MULTIBEAM SENSORS, DETEM,
1108691
ActiveSICK, Inc.
SAFETY MULTIBEAM SENSORS, DETEM,
Description
General part information
1108691

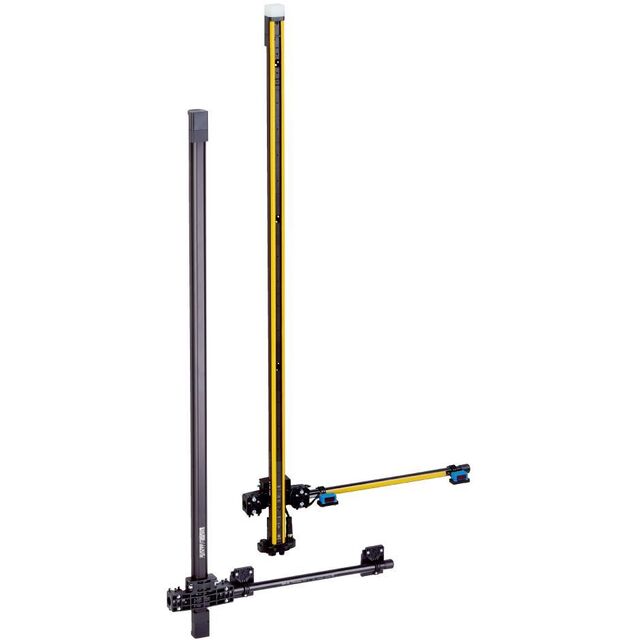

Light Curtain Muting Function
Technical Specifications
Parameters and characteristics for this part
| Specification | 1108691 |
|---|---|
| Beam Pitch | 300 mm |
| Features | Muting Function |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Number of Beams | 4 |
| Operating Range (Max) | 3.2 m |
| Operating Range (Min) | 500 mm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -30 °C |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
