630-5W1-250-3T1

Active

EDAC Inc.

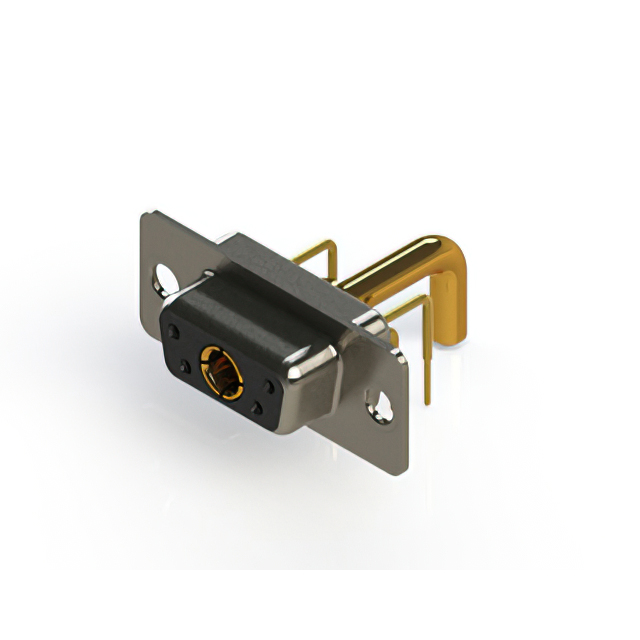

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-5W1-250-3T1

Active

EDAC Inc.

CONN D-SUB RCPT 5POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-5W1-250-3T1

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	1 (DE, E) - 5W1
Termination	Solder
Voltage Rating	125 VDC

630-5W1 Series

...

Part	Material Flammability Rating	Color	Number of Positions	Connector Type	Current Rating (Amps)	Voltage Rating	Connector Style	Flange Feature	Mounting Type	Contact Finish	Features	Contact Type	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Dielectric Material	Number of Rows	Shell Material, Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 630-5W1-240-3NC	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 30 A	125 VDC	Combo D-Sub	Housing/Shell (M3)	Through Hole Right Angle	Gold	Mounting Brackets	Signal and Power	Flash	-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2	Nickel Plated Steel	Copper Alloy
EDAC Inc. 630-5W1-650-2N4	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 20 A	125 VDC	Combo D-Sub	Housing/Shell (4-40)	Through Hole Right Angle	Gold	Mounting Brackets	Signal and Power		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2	Nickel Plated Steel	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 630-5W1-240-1TB	UL94 V-0	Black	5	Receptacle Female Sockets		125 VDC	Combo D-Sub	Housing/Shell (M3)	Through Hole Right Angle	Gold	Board Lock Mounting Brackets	Signal and Power	Flash	-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2		Copper Alloy			10A 5A
EDAC Inc. 630-5W1-650-2T5	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 20 A	125 VDC	Combo D-Sub	4-40	Through Hole Right Angle	Gold	Board Lock Mounting Brackets	Signal and Power		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2		Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 630-5W1-640-2NE	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 20 A	125 VDC	Combo D-Sub	M3	Through Hole Right Angle	Gold	Mounting Brackets	Signal and Power		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2	Nickel Plated Steel	Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 630-5W1-250-3T1	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 30 A	125 VDC	Combo D-Sub	Housing/Shell (Unthreaded)	Through Hole Right Angle	Gold	Shielded	Signal and Power	Flash	-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2		Copper Alloy
EDAC Inc. 630-5W1-640-5T3	UL94 V-0	Black		Receptacle Female Sockets		125 VDC	Combo D-Sub	Housing/Shell (4-40)	Through Hole Right Angle	Gold	Board Lock Mounting Brackets	Coax Signal		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2		Copper Alloy	0.76 Ám	30 Áin		4	1
EDAC Inc. 630-5W1-650-3T4	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 30 A	125 VDC	Combo D-Sub	Housing/Shell (4-40)	Through Hole Right Angle	Gold	Mounting Brackets	Signal and Power		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2		Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 630-5W1-650-4TD	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 40 A	125 VDC	Combo D-Sub	M3	Through Hole Right Angle	Gold	Board Lock Mounting Brackets	Signal and Power		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2		Copper Alloy	0.76 Ám	30 Áin
EDAC Inc. 630-5W1-650-2N1	UL94 V-0	Black	5	Receptacle Female Sockets	5 A 20 A	125 VDC	Combo D-Sub	Housing/Shell (Unthreaded)	Through Hole Right Angle	Gold	Shielded	Signal and Power		-55 °C	125 °C	Solder	9.4 mm	0.37 in	1 (DE E) - 5W1	Polyester Thermoplastic	2	Nickel Plated Steel	Copper Alloy	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 3.44

Description

General part information

630-5W1 Series

5 (4 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
