MQF574T25-187.500-1.0/-40+85
ActiveMercury Electronics Ind. Co. Ltd
XTAL OSC TCXO 187.5000MHZ CMOS
MQF574T25-187.500-1.0/-40+85
ActiveMercury Electronics Ind. Co. Ltd
XTAL OSC TCXO 187.5000MHZ CMOS
Description
General part information
MQF574T25-187.500-1.0/-40+85

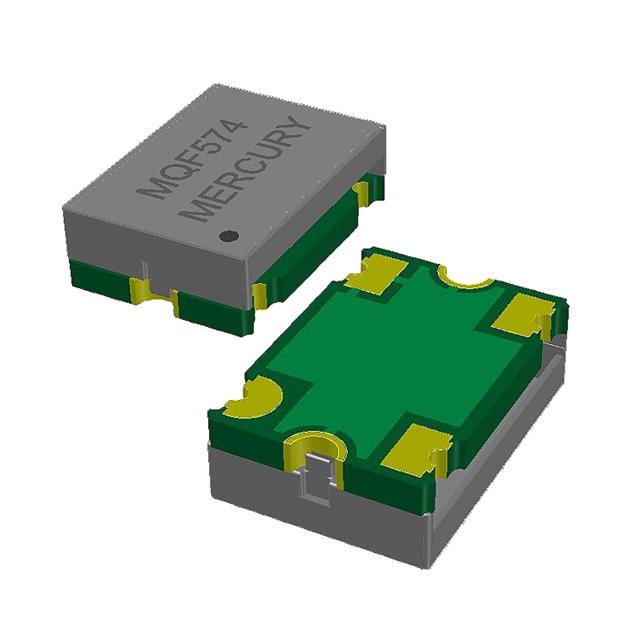

187.5 MHz TCXO CMOS Oscillator 2.5V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | MQF574T25-187.500-1.0/-40+85 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 18 mA |
| Current - Supply (Max) | 25 mA |
| Frequency | 187.5 MHz |
| Frequency Stability | 1 ppm |
| Height - Seated (Max) | 0.102 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | TCXO |
| Voltage - Supply | 2.5 V |
