100829NP

Active

LAPP

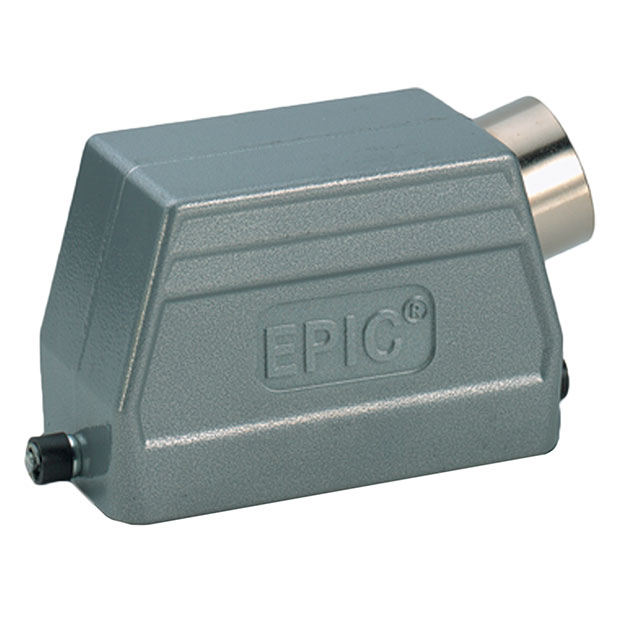

CONN HOOD HB16 SE NPT3/4

Search across all available documentation for this part.

Active

LAPP

CONN HOOD HB16 SE NPT3/4

Technical Specifications

Parameters and characteristics for this part

Specification	100829NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB16
Size / Dimension [x]	3.673 "
Size / Dimension [x]	93.3 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.402 "
Size / Dimension [z]	61 mm
Style	Side Entry
Thread Size	NPT-3/4

CONN HOOD HB16 SE NPT3/4

Part	Thread Size	Style	Lock Location	Housing Color	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Size
LAPP 100829NP	NPT-3/4	Side Entry	Locking Clip (1) on Base Bottom	Gray	Powder Coated	125 °C	-40 °C	IP65 - Dust Tight, Water Resistant	Aluminum Alloy	3.673 "	93.3 mm	1.693 in	2.402 "	61 mm	43 mm	Hood	HB16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-3/4 HB16 IP65 - Dust Tight, Water Resistant
