Description
General part information

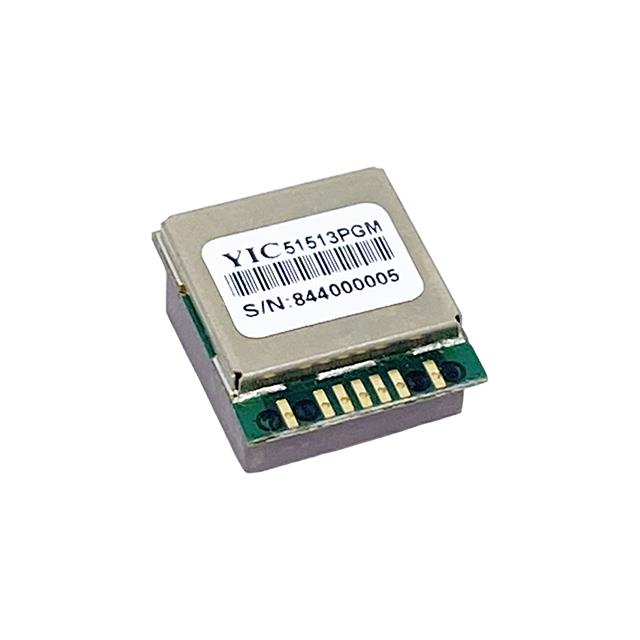

YIC51513PGMGG
YIC5 RF Receiver BeiDou, GLONASS, GNSS, GPS 1.598GHz ~ 1.605GHz, 1.575GHz -165dBm 9.6kbps On-Board, Patch
Technical Specifications
Parameters and characteristics for this part
| Specification | YIC51513PGMGG |
|---|---|
| Antenna Connector | Patch, On-Board |
| Applications | GPS |
| Current - Receiving | 150 mA |
| Data Interface | UART |
| Data Rate (Max) | 9.6 kBaud |
| Frequency (Additional) | 1.575 GHz |
| Frequency (Max) | 1.605 GHz |
| Frequency (Min) | 1.598 GHz |
| Frequency Range 1 (Max) | 1.605 GHz |
| Frequency Range 1 (Min) | 1.598 GHz |
| Frequency Range 2 (Max) | 1.575 GHz |
| Frequency Range 2 (Min) | 1.575 GHz |
| Grade | Automotive |
| Modulation or Protocol | Galileo, GNSS, GPS, GLONASS, BeiDou |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Sensitivity | -165 dBm |
| Voltage - Supply (Maximum) | 4.3 V |
| Voltage - Supply (Minimum) | 3 V |
