RG142-BM-SM(QTY:90ft)
ActiveMcGill Microwave Systems
RG142 CABLE ASSY 90 FT BNC TO S
RG142-BM-SM(QTY:90ft)
ActiveMcGill Microwave Systems
RG142 CABLE ASSY 90 FT BNC TO S
Description
General part information
RG142-BM-SM(QTY:90ft)

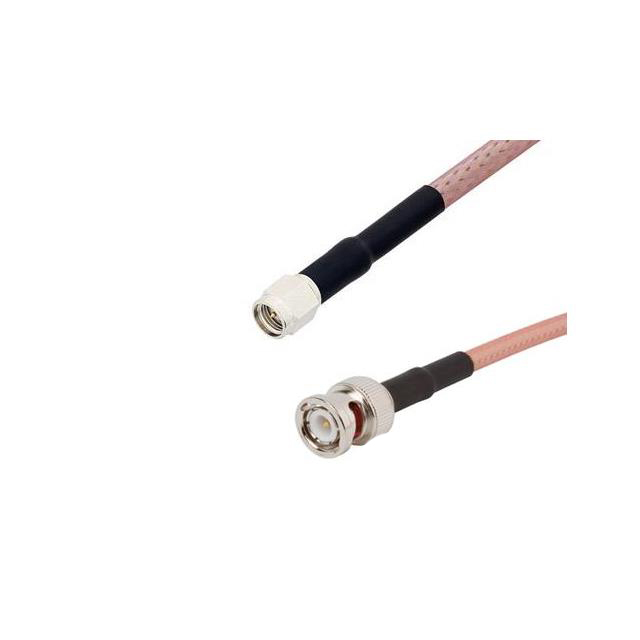

Cable Assembly Coaxial BNC to SMA RG-142 1080.0" (27.4m) 90.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG142-BM-SM(QTY:90ft) |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Frequency - Max | 3 GHz |
| Length | 1080 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Style | SMA, BNC |
