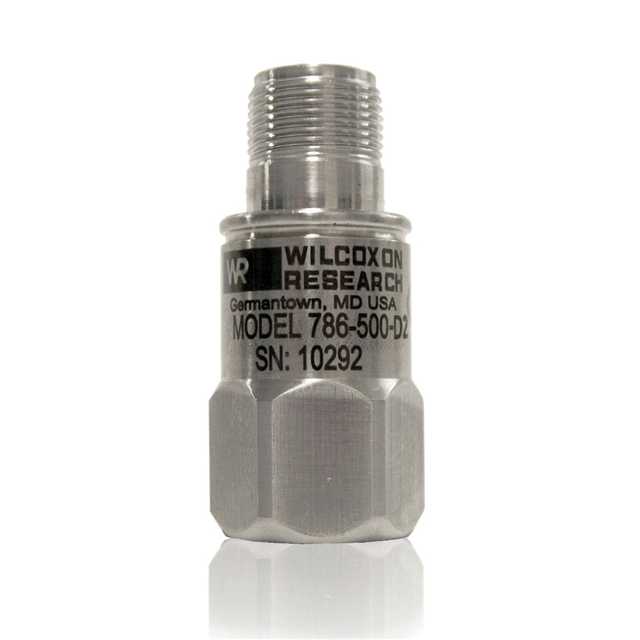

786-500-D2
ActiveAmphenol Wilcoxon Sensing Technologies
ACCEL IEPE SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
786-500-D2
ActiveAmphenol Wilcoxon Sensing Technologies
ACCEL IEPE SENSOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 786-500-D2 |
|---|---|
| Acceleration Range | 10 g |
| Axis [x] | X |
| Bandwidth [Max] | 10 kHz |
| Bandwidth [Min] | 0.2 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Sensitivity (mV/g) | 500 mV/g |
| Type | Analog |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 451.10 | |
Description
General part information
786-500-D2
Accelerometer X Axis ±10g 0.2Hz ~ 10kHz
Documents
Technical documentation and resources
No documents available
