P1053 BK005
ActiveALPHA WIRE

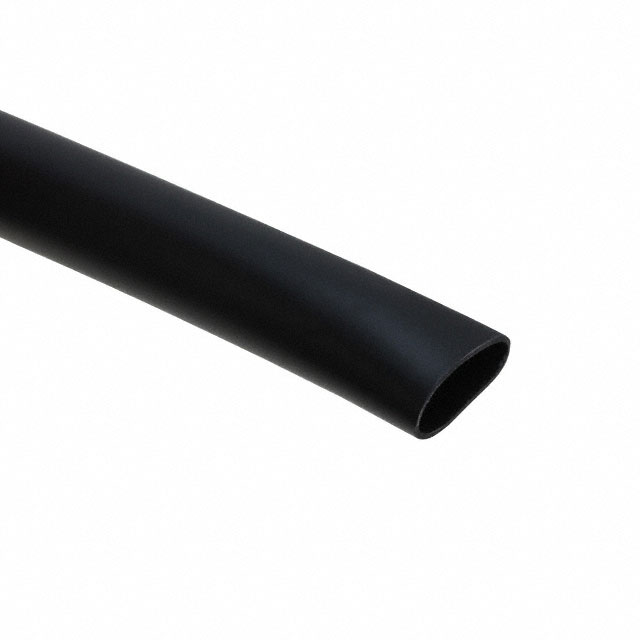

TUBING 0.229" ID PVC 100' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsFIT Wire Management Catalog
P1053 BK005
ActiveALPHA WIRE
TUBING 0.229" ID PVC 100' BLACK
Deep-Dive with AI
DocumentsFIT Wire Management Catalog
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P1053 BK005 | P1053 Series |
|---|---|---|
| Abrasion Protection | Abrasion Resistant | Abrasion Resistant |
| Color | Black | Clear, Black |
| Diameter - Inside [diameter] | 5.82 mm | 5.82 mm |
| Diameter - Inside [diameter] | 0.229 in | 0.229 in |
| Diameter - Outside [diameter] | 0.289 " | 0.289 " |
| Diameter - Outside [diameter] | 7.34 mm | 7.34 mm |
| Environment Protection | UV Resistant, Corrosion Resistant | UV Resistant, Corrosion Resistant |
| Heat Protection | Heat Resistant | Heat Resistant |
| Length | 100 ft | 100 ft |
| Length | 30.48 m | 30.48 m |
| Length | - | 76.2 m |
| Length | - | 250 ft |
| Liquid Protection | Oil Resistant | Oil Resistant |
| Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Material Flammability Rating | UL 224 VW-1 | UL 224 VW-1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -20 C | -20 C |
| Type | Solid Tubing | Solid Tubing |
| Type Attributes | Smooth | Smooth |
| Wall Thickness [custom] | 0.51 mm | 0.51 mm |
| Wall Thickness [custom] | 0.02 in | 0.02 in |
P1053 Series
PVC1053 CLEAR 250 FT ROHS COMPLIANT: YES
| Part | Wall Thickness [custom] | Wall Thickness [custom] | Material Flammability Rating | Type | Length [x] | Length [x] | Abrasion Protection | Color | Environment Protection | Liquid Protection | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Type Attributes | Operating Temperature [Min] | Operating Temperature [Max] | Heat Protection | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE P1053 CL003 | 0.51 mm | 0.02 in | UL 224 VW-1 | Solid Tubing | 76.2 m | 250 ft | Abrasion Resistant | Clear | Corrosion Resistant, UV Resistant | Oil Resistant | 5.82 mm | 0.229 in | Smooth | -20 C | 105 ░C | Heat Resistant | 0.289 " | 7.34 mm | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE P1053 BK005 | 0.51 mm | 0.02 in | UL 224 VW-1 | Solid Tubing | Abrasion Resistant | Black | Corrosion Resistant, UV Resistant | Oil Resistant | 5.82 mm | 0.229 in | Smooth | -20 C | 105 ░C | Heat Resistant | 0.289 " | 7.34 mm | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 52.53 | |
| 5 | $ 49.24 | |||
| 10 | $ 45.96 | |||
| 25 | $ 43.66 | |||
| 50 | $ 42.68 | |||
| 100 | $ 41.69 | |||
Description
General part information
P1053 Series
Black Poly-Vinyl Chloride (PVC) Smooth Solid Tubing 0.229" (5.82mm) 100' (30.48m)
Documents
Technical documentation and resources
