3210405
ActivePhoenix Contact
CONN TERM BLK DISCONN 12-26AWG
3210405
ActivePhoenix Contact
CONN TERM BLK DISCONN 12-26AWG
Description
General part information
3210405

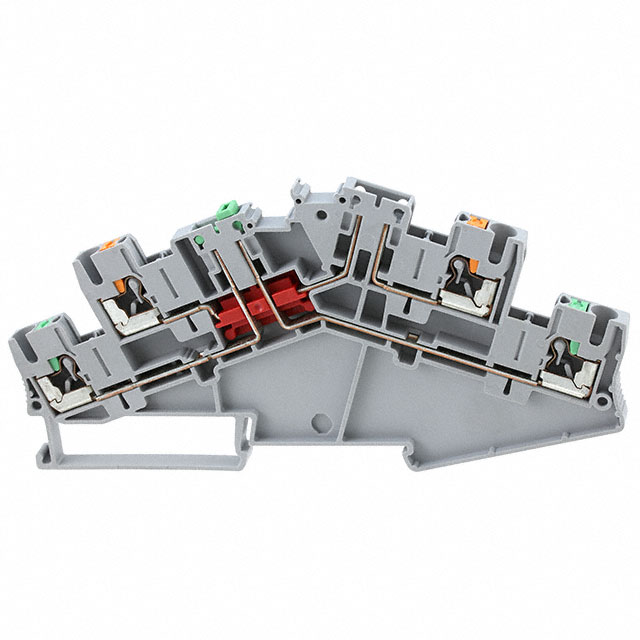

Terminal Block Connector 4 Position Disconnect Gray 12-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3210405 |
|---|---|
| Color | Gray |
| Current - IEC | 16 A |
| Current - UL | 16 A |
| Disconnect Type | Knife, Open, Switch |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In |
| Type | Disconnect |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
