PH0801CNLT
ActivePulse Electronics

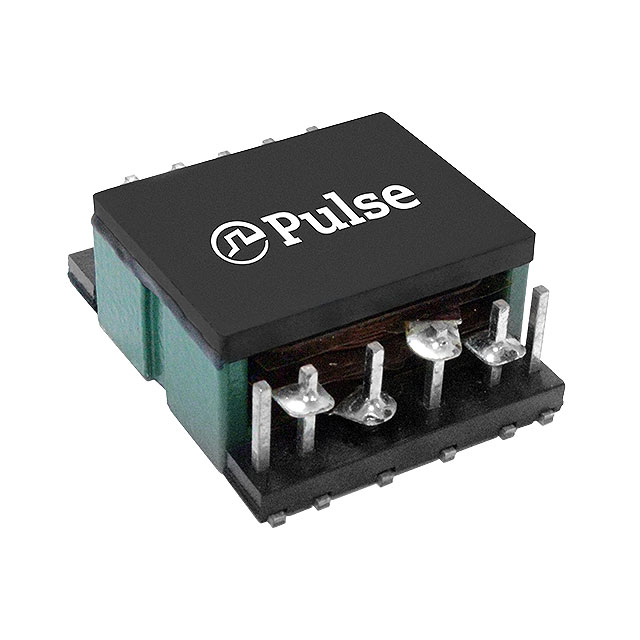

XFMR DC/DC CONV SMD
PH0801CNLT
ActivePulse Electronics
XFMR DC/DC CONV SMD
Description
General part information
PH0801CNLT
For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 200 ~ 700kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PH0801CNLT |
|---|---|
| Frequency (Max) | 700 kHz |
| Frequency (Min) | 200 kHz |
| Height - Seated (Max) | 0.358 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.85 in |
| Size / Dimension Width | 0.97 in |
| Style | Planar |
| Type | For DC/DC Converters |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary (Max) | 76 V |
| Voltage - Primary (Min) | 18 V |
