KRFS300A-12
ActiveElpress Inc.
RING NARROW TONGUE 300MM M12
KRFS300A-12
ActiveElpress Inc.
RING NARROW TONGUE 300MM M12
Description
General part information
KRFS300A-12

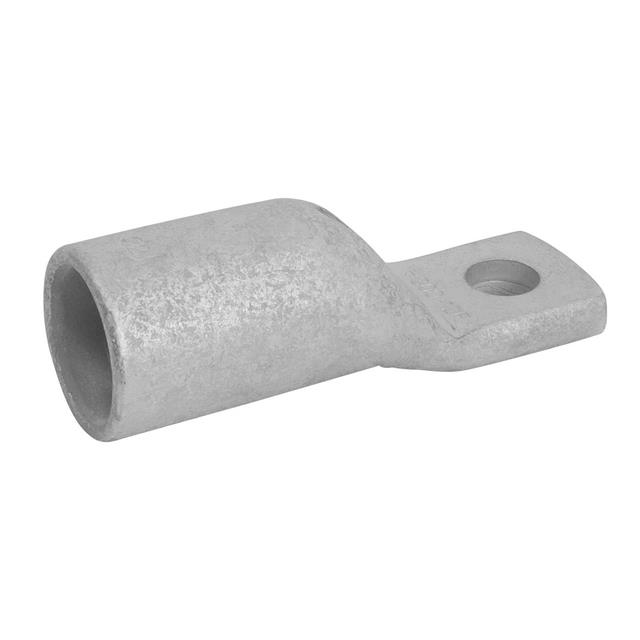

Terminal Connector Rectangular Ring, Tubular 600MCM (kcmil) M12 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRFS300A-12 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 3.701 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud, M12 |
| Tab Thickness | 0.339 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 1.22 in |
| Wire Gauge (MCM) | 600 MCM |
