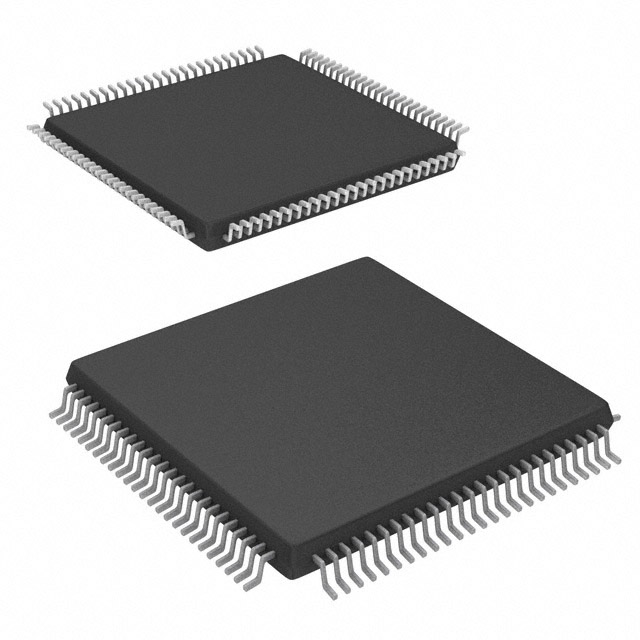

CY8C5268AXI-LP047 - 100-TQFP

CY8C5268AXI-LP047

Active

Cypress Semiconductor

IC MCU 32BIT 256KB FLASH 100TQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY8C5268AXI-LP047 - 100-TQFP

CY8C5268AXI-LP047

Active

Cypress Semiconductor

IC MCU 32BIT 256KB FLASH 100TQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CY8C5268AXI-LP047	CY8C5268 Series

Connectivity [custom]	LINbus, USB, SPI, UART/USART, I2C	LINbus, USB, SPI, UART/USART, I2C
Core Processor	ARM® Cortex®-M3	ARM® Cortex®-M3
Core Size	32-Bit Single-Core	32-Bit Single-Core
Data Converters	D/A 1x8b, A/D 1x12b	D/A 1x8b, A/D 1x12b
EEPROM Size	2 K	2 K
Mounting Type	Surface Mount	Surface Mount
Number of I/O	62	62
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal
Package / Case	100-LQFP	68-VFQFN Exposed Pad, 100-LQFP
Peripherals	WDT, POR, LCD, DMA, CapSense, PWM	WDT, POR, LCD, DMA, CapSense, PWM
Program Memory Size	256 KB	256 KB
Program Memory Type	FLASH	FLASH
RAM Size	64 K	64 K
Speed	67 MHz	67 MHz
Supplier Device Package	100-TQFP (14x14)	68-QFN (8x8), 100-TQFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V	1.71 V
