DMN12M7UCA10-7
ActiveDiodes Inc
MOSFET BVDSS: 8V~24V X4-DSN3015-10 T&R 5K
Deep-Dive with AI
Search across all available documentation for this part.
DMN12M7UCA10-7
ActiveDiodes Inc
MOSFET BVDSS: 8V~24V X4-DSN3015-10 T&R 5K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN12M7UCA10-7 |
|---|---|
| Configuration | 2 N-Channel (Dual) |
| Current - Continuous Drain (Id) @ 25°C | 20.2 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

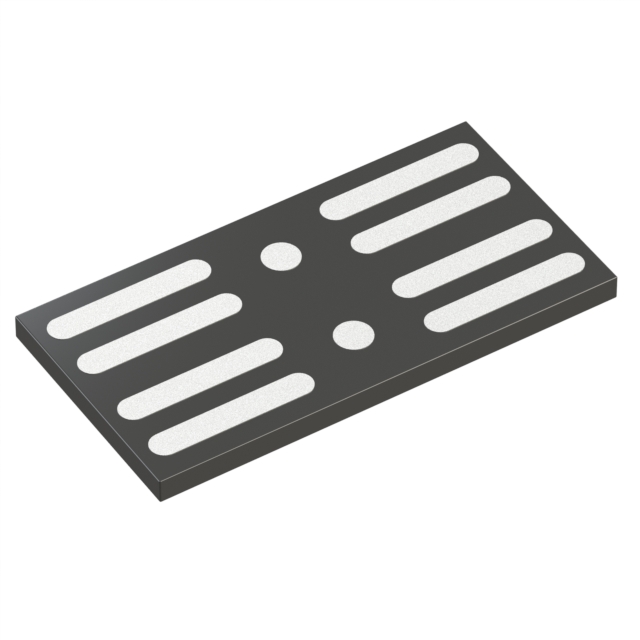

| Package / Case | 10-SMD, No Lead |
| Rds On (Max) @ Id, Vgs | 2.75 mOhm |
| Supplier Device Package | X4-DSN3015-10 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.92 | |
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.39 | |||
| 2000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.92 | ||
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.39 | |||
| 2000 | $ 0.35 | |||
| Tape & Reel (TR) | 5000 | $ 0.33 | ||
| 10000 | $ 0.31 | |||
Description
General part information
DMN12M7UCA10 Series
N-Channel Enhancement Mode MOSFET
