963357-4
ActiveTE Connectivity AMP Connectors

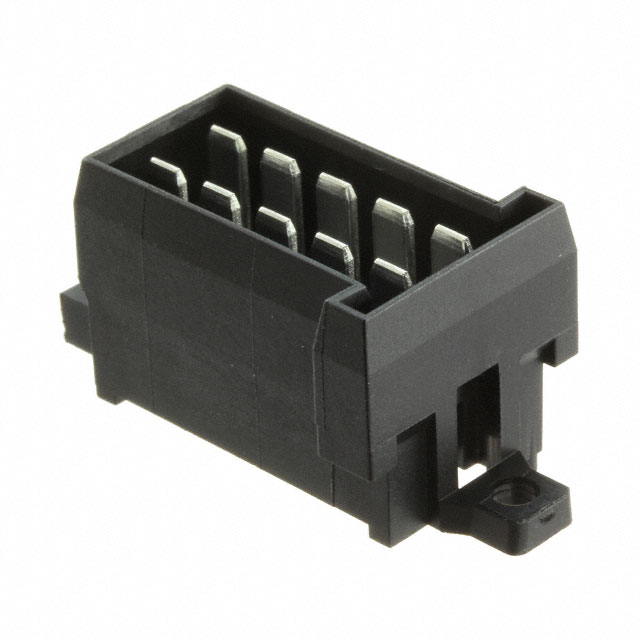

CONN HEADER VERT 10POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
963357-4
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 963357-4 | 963357 Series |
|---|---|---|
| Connector Type | Plug | Plug |
| Contact Finish - Mating | Silver | Silver |
| Contact Length - Mating | 0.366 in | 0.366 in |
| Contact Length - Mating | 9.3 mm | 9.3 mm |
| Contact Length - Post [x] | 0.134 in | 0.134 in |
| Contact Length - Post [x] | 3.4 mm | 3.4 mm |
| Contact Material | Copper Zinc | Copper Zinc |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Features | Board Guide, Mounting Flange | Board Guide, Mounting Flange |
| Insulation Color | Black | Black |
| Insulation Height | 18.3 mm | 18.3 mm |
| Insulation Height | 0.72 in | 0.72 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 4 - 22 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Pitch - Mating | 5 mm | 5 mm |
| Pitch - Mating | 0.197 " | 0.197 " |
| Row Spacing - Mating | 0.217 in | 0.217 in |
| Row Spacing - Mating | 5.51 mm | 5.51 mm |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.32 | |
| 10 | $ 5.53 | |||
| 100 | $ 4.95 | |||
| 504 | $ 4.61 | |||
| 1008 | $ 4.11 | |||
963357 Series
CONN HEADER VERT 4POS 5MM
| Part | Contact Shape | Contact Type | Features | Contact Finish - Mating | Termination | Contact Material | Insulation Height | Insulation Height | Insulation Color | Mounting Type | Number of Positions | Style | Number of Rows | Insulation Material | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 963357-6 | Rectangular | Tab | Board Guide, Mounting Flange | Silver | Solder | Copper Zinc | 18.3 mm | 0.72 in | Black | Through Hole | 4 | Board to Cable/Wire | 2 | Polybutylene Terephthalate (PBT), Glass Filled | All | 0.366 in | 9.3 mm | 0.134 in | 3.4 mm | 0.217 in | 5.51 mm | 5 mm | 0.197 " | Plug |
TE Connectivity AMP Connectors 963357-3 | Rectangular | Tab | Board Guide, Mounting Flange | Silver | Solder | Copper Zinc | 18.3 mm | 0.72 in | Black | Through Hole | 14 | Board to Cable/Wire | 2 | Polybutylene Terephthalate (PBT), Glass Filled | All | 0.366 in | 9.3 mm | 0.134 in | 3.4 mm | 0.217 in | 5.51 mm | 5 mm | 0.197 " | Plug |
TE Connectivity AMP Connectors 963357-2 | Rectangular | Tab | Board Guide, Mounting Flange | Silver | Solder | Copper Zinc | 18.3 mm | 0.72 in | Black | Through Hole | 18 | Board to Cable/Wire | 2 | Polybutylene Terephthalate (PBT), Glass Filled | All | 0.366 in | 9.3 mm | 0.134 in | 3.4 mm | 0.217 in | 5.51 mm | 5 mm | 0.197 " | Plug |
TE Connectivity AMP Connectors 963357-4 | Rectangular | Tab | Board Guide, Mounting Flange | Silver | Solder | Copper Zinc | 18.3 mm | 0.72 in | Black | Through Hole | 10 | Board to Cable/Wire | 2 | Polybutylene Terephthalate (PBT), Glass Filled | All | 0.366 in | 9.3 mm | 0.134 in | 3.4 mm | 0.217 in | 5.51 mm | 5 mm | 0.197 " | Plug |
TE Connectivity AMP Connectors 963357-1 | Rectangular | Tab | Board Guide, Mounting Flange | Silver | Solder | Copper Zinc | 18.3 mm | 0.72 in | Black | Through Hole | 22 positions | Board to Cable/Wire | 2 | Polybutylene Terephthalate (PBT), Glass Filled | All | 0.366 in | 9.3 mm | 0.134 in | 3.4 mm | 0.217 in | 5.51 mm | 5 mm | 0.197 " | Plug |
Description
General part information
963357 Series
Connector Header Through Hole 10 position 0.197" (5.00mm)
