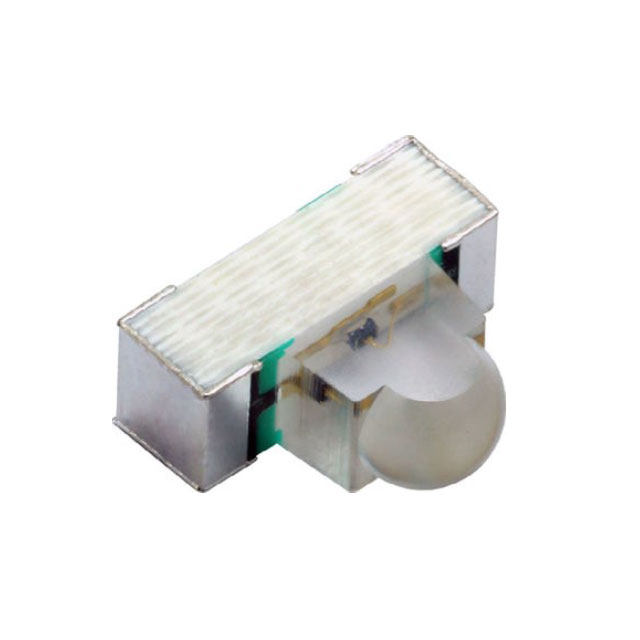

VSMB14940

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 70MA SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 70MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VSMB14940

Current - DC Forward (If) (Max)	70 mA
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	2-SMD, No Lead Exposed Pad
Radiant Intensity (Ie) Min @ If [Min]	35 mW/sr
Type	Infrared (IR)
Viewing Angle	18 °
Wavelength	940 nm

EMITTER IR 940NM 70MA SMD

Part	Mounting Type	Type	Radiant Intensity (Ie) Min @ If [Min]	Package / Case	Wavelength	Viewing Angle	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Current - DC Forward (If) (Max)
Vishay Semiconductor Opto Division VSMB14940	Surface Mount, Right Angle	Infrared (IR)	35 mW/sr	2-SMD, No Lead Exposed Pad	940 nm	18 °	85 °C	-40 °C	Side View	70 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.33V 70mA 35mW/sr @ 70mA 18° 2-SMD, No Lead Exposed Pad
