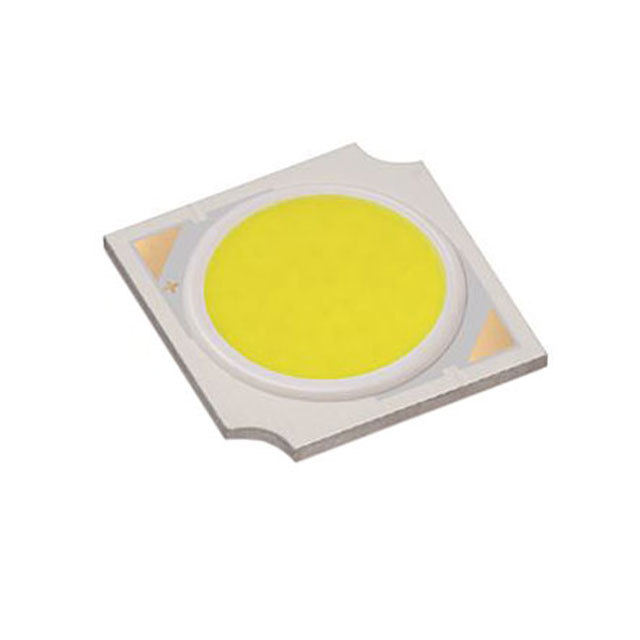

CLU028-1202C4-30AL7K3

Active

Citizen

LED COB CLU028 WM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

CLU028-1202C4-30AL7K3

Active

Citizen

LED COB CLU028 WM WHT SQ 3000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	54	$ 3.89

Description

General part information

CLU028 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CLU028 White, Warm Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLU028-1202C4-30AL7K3	CLU028 Series

CCT (K)	3000 K	2700 - 6500 K
Color	White, Warm	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	70	70 - 97
Current - Max [Max]	460 mA	230 - 920 mA
Current - Test	180 mA	90 - 360 mA
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9.8 mm	9.8 mm
Lumens/Watt @ Current - Test	156 lm/W	104 - 166 lm/W
Luminous Flux @ Current/Temperature	970 lm	335 - 1805 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	34.6 V	34.6 V

CLU028 Series

LED COB CLU028 WARM WHT SQ 2700K

Part	Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Height [z]	Type	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Color	Lumens/Watt @ Current - Test	Current - Max [Max]	Configuration	Lens Type	Temperature - Test
Citizen CLU028-1202C4-273H5K2	180 mA	2700 K	34.6 V	90	1.4 mm	Chip On Board (COB)	726 lm	9.8 mm	Warm, White	117 lm/W	460 mA	Square	Flat	85 °C
Citizen CLU028-1204C4-353H5K2	360 mA	3500 K	34.6 V	90	1.4 mm	Chip On Board (COB)	1490 lm	9.8 mm	Warm, White	120 lm/W	920 mA	Square	Flat	85 °C
Citizen CLU028-1203C4-273M2K1	270 mA	2700 K	34.6 V	80	1.4 mm	Chip On Board (COB)	1294 lm	9.8 mm	Warm, White	139 lm/W	690 mA	Square	Flat	85 °C
Citizen CLU028-1203C4-353H5K2	270 mA	3500 K	34.6 V	90	1.4 mm	Chip On Board (COB)	1137 lm	9.8 mm	Warm, White	122 lm/W	690 mA	Square	Flat	85 °C
Citizen CLU028-1202C4-40AL7K3	180 mA	4000 K	34.6 V	70	1.4 mm	Chip On Board (COB)		9.8 mm	Neutral, White	161 lm/W	460 mA	Square	Flat	85 °C
Citizen CLU028-1204C4-273H5K2	360 mA	2700 K	34.6 V	90	1.4 mm	Chip On Board (COB)	1399 lm	9.8 mm	Warm, White	112 lm/W	920 mA	Square	Flat	85 °C
Citizen CLU028-1202C4-403H7K4	180 mA	4000 K	34.6 V	97	1.4 mm	Chip On Board (COB)	714 lm	9.8 mm	Neutral, White	115 lm/W	460 mA	Square	Flat	85 °C
Citizen CLU028-1204C4-353M2K1	360 mA	3500 K	34.6 V	80	1.4 mm	Chip On Board (COB)	1805 lm	9.8 mm	Warm, White	145 lm/W	920 mA	Square	Flat	85 °C
Citizen CLU028-1203C4-303H7K4	270 mA	3000 K	34.6 V	97	1.4 mm	Chip On Board (COB)	1019 lm	9.8 mm	Warm, White	109 lm/W	690 mA	Square	Flat	85 °C
Citizen CLU028-1202C4-653M2K1	180 mA	6500 K	34.6 V	80	1.4 mm	Chip On Board (COB)	978 lm	9.8 mm	Cool, White	157 lm/W	460 mA	Square	Flat	85 °C
