08SH-A-02-TS-SMT-PP-T/R

Unknown

Adam Tech

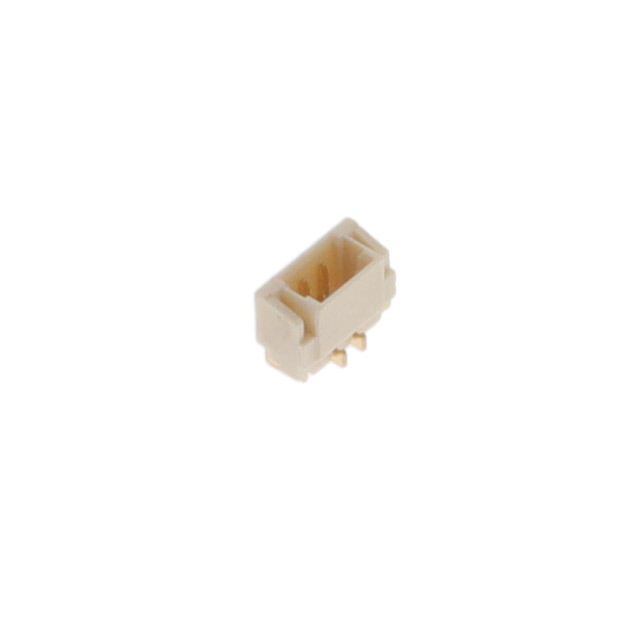

CONN HEADER SMD 2POS 0.8MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

08SH-A-02-TS-SMT-PP-T/R

Unknown

Adam Tech

CONN HEADER SMD 2POS 0.8MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	08SH-A-02-TS-SMT-PP-T/R	08SH-A Series

Connector Type	Header	Header
Contact Finish - Mating	-	Gold
Contact Finish - Post	Tin	Gold, Tin
Contact Finish Thickness - Mating	-	Flash
Contact Finish Thickness - Post	-	Flash
Contact Material	Copper Alloy	Phosphor Bronze, Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Friction Lock	Friction Lock
Features	Solder Retention	Pick and Place, Solder Retention
Insulation Color	Black	Natural, Black
Insulation Height [z]	2.7 mm	2.7 mm
Insulation Height [z]	0.106 in	0.106 in
Insulation Material	Polyamide (PA), Nylon	Thermoplastic, Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	2	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch - Mating	0.031 in	0.031 in
Pitch - Mating	0.8 mm	0.8 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	30 - 250 VAC

08SH-A Series

CONN HEADER SMD 3POS 0.8MM

Part	Number of Rows	Contact Material	Number of Positions Loaded	Contact Type	Shrouding	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Color	Voltage Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Insulation Material	Features	Connector Type	Current Rating (Amps)	Material Flammability Rating	Termination	Fastening Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Positions
Adam Tech 08SH-A-03-GS-SMT-PP-T/R	1	Phosphor Bronze	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Natural	30 VAC	Gold	Flash	Flash	Thermoplastic	Pick and Place, Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C	Gold	Surface Mount
Adam Tech 08SH-A-04-TS-SMT-PP-T/R	1	Copper Alloy	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Black	250 VAC	Tin			Nylon, Polyamide (PA)	Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C		Surface Mount	2.7 mm	0.106 in	4
Adam Tech 08SH-A-04-GS-SMT-PP-T/R	1	Phosphor Bronze	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Natural	30 VAC	Gold	Flash	Flash	Thermoplastic	Pick and Place, Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C	Gold	Surface Mount			4
Adam Tech 08SH-A-05-GS-SMT-PP-T/R	1	Phosphor Bronze	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Natural	30 VAC	Gold	Flash	Flash	Thermoplastic	Pick and Place, Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C	Gold	Surface Mount
Adam Tech 08SH-A-10-TS-SMT-PP-T/R	1	Copper Alloy	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Black	250 VAC	Tin			Nylon, Polyamide (PA)	Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C		Surface Mount	2.7 mm	0.106 in	10
Adam Tech 08SH-A-08-GS-SMT-PP-T/R	1	Phosphor Bronze	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Natural	30 VAC	Gold	Flash	Flash	Thermoplastic	Pick and Place, Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C	Gold	Surface Mount			8
Adam Tech 08SH-A-09-GS-SMT-PP-T/R	1	Phosphor Bronze	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Natural	30 VAC	Gold	Flash	Flash	Thermoplastic	Pick and Place, Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C	Gold	Surface Mount			9
Adam Tech 08SH-A-08-TS-SMT-PP-T/R	1	Copper Alloy	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Black	250 VAC	Tin			Nylon, Polyamide (PA)	Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C		Surface Mount	2.7 mm	0.106 in	8
Adam Tech 08SH-A-02-TS-SMT-PP-T/R	1	Copper Alloy	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Black	250 VAC	Tin			Nylon, Polyamide (PA)	Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C		Surface Mount	2.7 mm	0.106 in	2
Adam Tech 08SH-A-06-GS-SMT-PP-T/R	1	Phosphor Bronze	All	Male Pin	Shrouded - 4 Wall	Square	0.031 in	0.8 mm	Natural	30 VAC	Gold	Flash	Flash	Thermoplastic	Pick and Place, Solder Retention	Header	Varies by Wire Gauge	UL94 V-0	Solder	Friction Lock	Board to Cable/Wire	-25 °C	85 °C	Gold	Surface Mount			6
