1217C SL001

Active

ALPHA WIRE

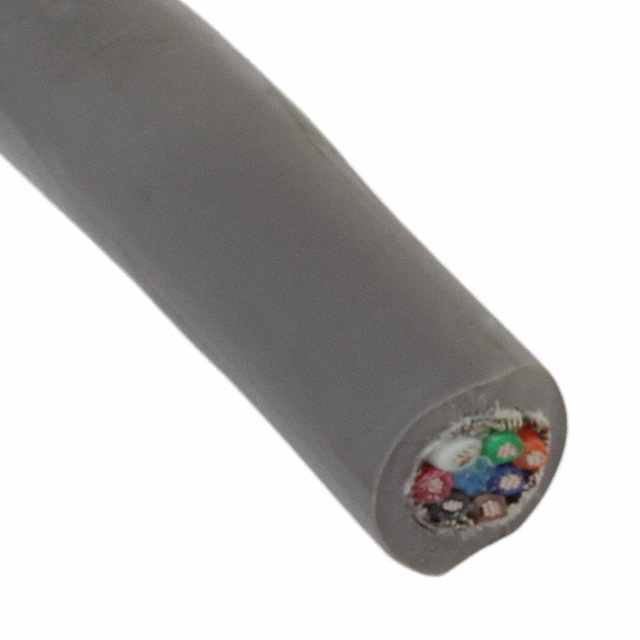

CABLE 7COND 24AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 7COND 24AWG SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1217C SL001	1217C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.11 mm	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	7	7
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 7COND 24AWG SHLD 1000'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Voltage	Features	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Conductor Material	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Cable Type	Length	Length	Shield Material	Jacket (Insulation) Material	Shield Type	Length [x]	Length [x]
ALPHA WIRE 1217C SL001	5.11 mm	0.201 in	100 %	300 V	Drain Wire	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	7	24 AWG	32 AWG	7	Slate	Multi-Conductor	1000 ft	304.8 m	Aluminum	Poly-Vinyl Chloride (PVC)	Foil
ALPHA WIRE 1217C SL005	5.11 mm	0.201 in	100 %	300 V	Drain Wire	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	7	24 AWG	32 AWG	7	Slate	Multi-Conductor			Aluminum	Poly-Vinyl Chloride (PVC)	Foil	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
