SCNRF-6AAP-RAFR

Active

Suntsu Electronics, Inc

CONN RP-SMA JACK STR 50 OHMS

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN RP-SMA JACK STR 50 OHMS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCNRF-6AAP-RAFR	SCNRF-6AAP Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	RP-SMA	SMA, RP-SMA
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	335 V	335 V

CONN SMA JACK R/A 50 OHMS

Part	Housing Color	Impedance	Frequency - Max [Max]	Body Material	Center Contact Plating	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Style	Dielectric Material	Number of Ports	Shield Termination	Center Contact Material	Contact Termination	Connector Type	Voltage Rating
Suntsu Electronics, Inc SCNRF-6AAP-SAFR	Gold	50 Ohms	6000 MHz	Brass	Gold	Gold	85 °C	-55 °C	Through Hole, Right Angle	SMA	Polytetrafluoroethylene (PTFE)	1	Solder	Brass	Solder	Female Socket, Jack	335 V
Suntsu Electronics, Inc SCNRF-6AAP-RAFR	Gold	50 Ohms	6000 MHz	Brass	Gold	Gold	85 °C	-55 °C	Through Hole, Right Angle	RP-SMA	Polytetrafluoroethylene (PTFE)	1	Solder	Brass	Solder	Female Socket, Jack	335 V
Suntsu Electronics, Inc SCNRF-6AAP-SAFS	Gold	50 Ohms	6000 MHz	Brass	Gold	Gold	85 °C	-55 °C	Through Hole	SMA	Polytetrafluoroethylene (PTFE)	1	Solder	Brass	Solder	Female Socket, Jack	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

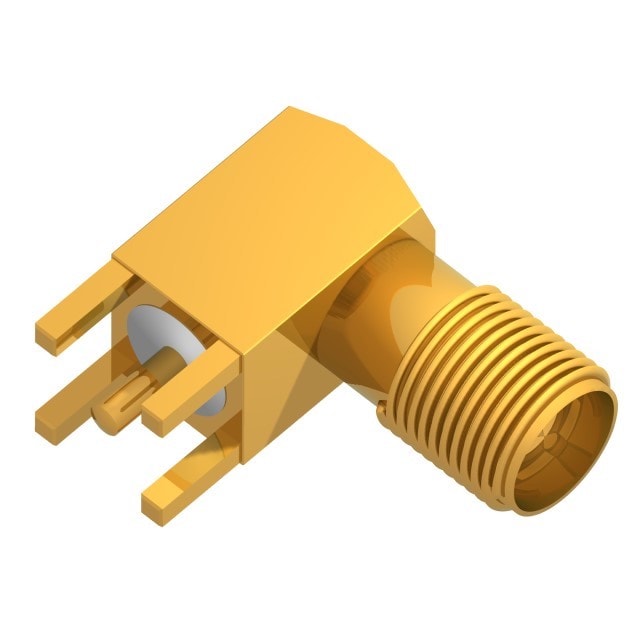

RP-SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
