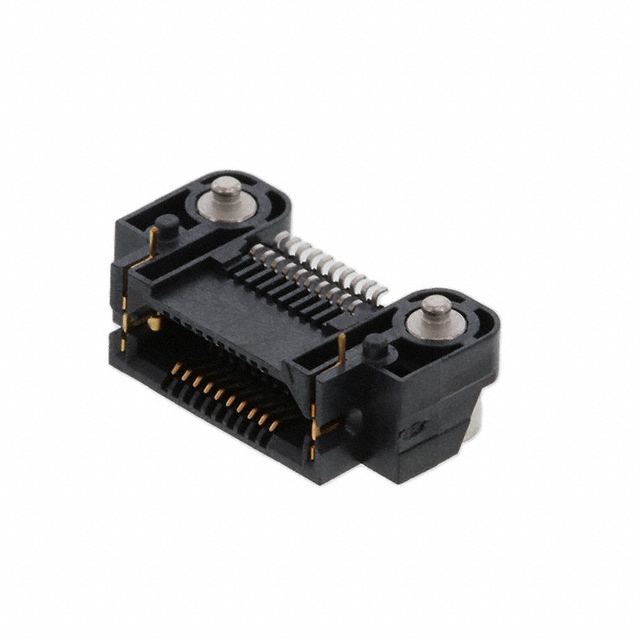

ERF8-010-01-L-D-RA-L-TR

Active

Samtec Inc.

MEZZANINE CONN, RCPT, 20POS, 2ROW, 0.8MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN One Page Summary EN +3

ERF8-010-01-L-D-RA-L-TR

Active

Samtec Inc.

MEZZANINE CONN, RCPT, 20POS, 2ROW, 0.8MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN One Page Summary EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-010-01-L-D-RA-L-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Mounting Flange, Latches
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-010 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Height Above Board	Height Above Board
Samtec Inc. ERF8-010-07.0-L-DV-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide
Samtec Inc. ERF8-010-01-L-D-RA-L-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount Right Angle				20	Board Guide Latches Mounting Flange	6.25 mm	0.246 in
Samtec Inc. ERF8-010-05.0-S-DV-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm			20	Board Guide	5.33 mm	0.21 in
Samtec Inc. ERF8-010-01-S-D-EM2-K-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Board Edge Straddle Mount				20	Pick and Place
Samtec Inc. ERF8-010-07.0-L-DV-EGP-K-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide Pick and Place
Samtec Inc. ERF8-010-07.0-L-DV-EGP-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide
Samtec Inc. ERF8-010-07.0-S-DV-EGPS-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide Shielded
Samtec Inc. ERF8-010-07.0-S-DV-EGP-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	30 Áin	0.76 Ám	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm	20	Board Guide
Samtec Inc. ERF8-010-01-L-D-EM2-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Board Edge Straddle Mount				20
Samtec Inc. ERF8-010-01-L-D-RA-TR	Gold	0.8 mm	0.031 in	Outer Shroud Contacts Socket	2	10 Áin	0.25 Ám	Surface Mount Right Angle				20	Board Guide Mounting Flange	6.25 mm	0.246 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.84
		10	$ 6.25
		25	$ 5.84
		50	$ 5.76
		100	$ 5.08
	Digi-Reel®	1	$ 6.84
		10	$ 6.25
		25	$ 5.84
		50	$ 5.76
		100	$ 5.08
	Tape & Reel (TR)	200	$ 5.08
		600	$ 4.44
		1000	$ 4.38
Newark	Each (Supplied on Cut Tape)	1	$ 6.64
		10	$ 6.12
		25	$ 5.73
		50	$ 5.59
		100	$ 5.08

Description

General part information

ERF8-010 Series

20 Position Connector Socket, Outer Shroud Contacts Surface Mount, Right Angle Gold
